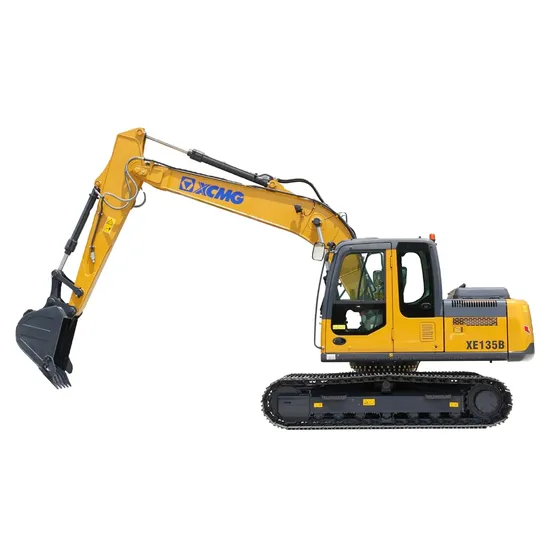

13 Ton Front End Digger Xe135b Mini Crawler Excavator

Product Description

Product Description
*XE135B is a small excavator which is comprehensively upgraded and is applicable for a variety of working conditions. The product integrates energy saving, reliability and comfort, features flexible operation and low noise, and is widely used in mines, construction site, underground mining, landscape engineering, municipal construction
*The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
*The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
*The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
*The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.

Product Parameters

Description	Parameter value
Operating weight	13000kg
Bucket capacity	0.4-0.52m³
Model	BB-4BG1TRP
No. of cylinders	4
Output power	72.7/2200kw/rpm
torque/speed	337.6/1600N.m
Displacement	4.329L
Main pump	2
Rated flow of main pump	2×123L/min
Pressure of prime valve	31.4/34.3MPa
Pressure of travel system	34.3MPa
Pressure of swing system	25MPa
Pressure of pilot system	3.9MPa
Fuel tank capacity	250L
Hydraulic tank capacity	130L
Engine oil capacity	14L
Overall length	7770mm
Overall width	2512mm
Overall height	2880mm
Width of platform	2512mm
Length of crawler	3660mm
Overall width of chassis	2490mm
Width of crawler	500mm
Track length on ground	2910mm
Crawler gauge	1990mm
Clearance under counterweight	964mm
Min. ground clearance	478mm
Min. tail swing radius	1805mm
Max. digging height	8641mm
Max. dumping height	6181mm
Max. digging depth	5538mm
Max. vertical wall digging depth	4727mm
Max. digging reach	8296mm
Min. swing radius	2335mm
Length of boom (Standard)	4600mm
Length of arm (Standard)	2510mm
Bucket capacity (Standard)	0.52m³
Bucket capacity (Optional)	0.4m³
