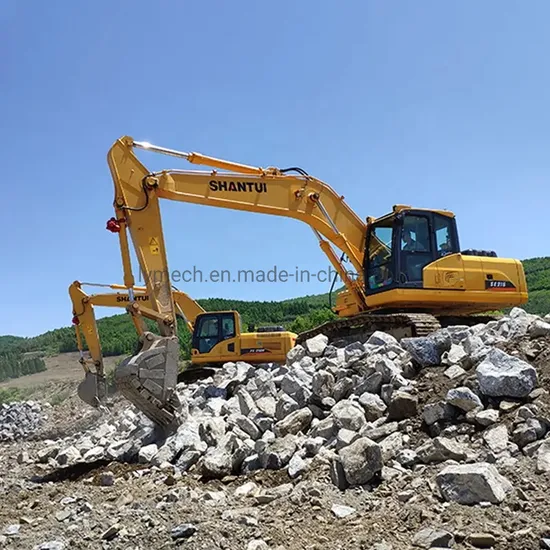

Chinese Shantui 20ton 116kw 1m3 210HP Se210W Weichai Engine Excellent Climbing Ability Hydraulic Excavator

Product Description

Product Description
SHANTUI SE210W excavator provides all the elements to give you the lowest cost to own and operate. At the end of the day, it all comes down to how much work you got done and how much did it cost you. SHANTUI SE210W offer you the tools to help lower your owning and operating costs.
Improved reliability and efficiency
A WEICHAI WP7 engine and powerful hydraulics give you the power to move your material with speed and precision. It works at the point of combustion to optimize engine performance and provide low exhaust emissions to meet Tier 3 emission regulations, with exceptional performance capabilities and proven reliability

Operator comfort and convenient control
Work comfortably and safely in a spacious and quiet cab which provides superb visibility from the operator seat to keep you awareof surroundings. An adjustable suspension seat can increase comfort and reduces operator fatigue.
Reliable and durable design
Using advanced engineering and software, we carefully analyze each structure to create durable, reliable machines for toughapplications.

Built-in safety features
ROPS and FOPS certified cab provides a safe work environment. The hydraulic activation level locks out all the hydraulic functions. Enter and exit the cab and walk on the upper structure safely with handrails, anti-skid plating and countersunk bolts which are meant to reduce slipping and tripping. Rear-view camera is also optional to protect working from all around.
Versatile SHANTUI attachments
Fast and easily change attachments with optional auxiliary hydraulics. Enhance your work capabilities with a variety of attachments including buckets, hammers, grapples and couplers
SHANTUI dealer can install hydraulic kits to properly operate attachments, maximizing machine uptime and profits.
Technical Specifications

Engine	Model	Weichai WP.7
	Type	High pressure and comon rail,water coling, in line ,6 cylinders,turbocharging
	Quantity of cylinders	6
	Bore x stroke	108x130mm
	Displacement	7.14 L
	Power output	116 kW/2000 rpm
	Maximum torque	-
Hydraulic System	Pump	Imported
	Type	Variable piston pump
	Maximum discharge flow	2x218 L/min
	Control circuit	3.9 MPa
	Travel circuit	31.9/34.3 MPa
	Swing circuit	25.5 MPa
Travel System	Travel motor	Variable axial piston motor
	Travel brakes	Lubricated double- disc
	Parking brake	Pressure release
	Travel shoes	2 x46
	Travel speed	3/5 km/h
	Drawbar pulling force	201 kN
	Gradeability	70%
	Minimum ground clearance	470 mm
Oil Capacity	Fuel tank	360L
	Cooling system	25 L
	Engine oil	24 L
	Hydraulic oil tank	250L
	System capacity	420 L
Swing System	Brake	Pressure Release Mechanical Braking
	Swing speed	11.5 rpm
	Tail swing radius	2905 mm
	Arm digging force	92.5/99.5 KN
	Bucket digging force	115/124 KN
Bucket	Bucket capacity	Backhoe bucket 0.9 m3 (SAE)
	Number of bucket teeth	5
	Bucket width	1267 mm
	Arm length	2.925 m
	Maximum digging reach/ Maximum digging reach at ground level	9.86 m/9.673 m
	Maximum digging depth/height	6.541 m/10.029 m
	Maximum dumping height	7.32 m
	Minimum swing radius	3.041 m

Working Conditions
Packaging & Shipping
Company Profile
FAQ
1. Why should you buy from us not from other suppliers?We are a manufacturer and distributor of construction machinery with many years of experience in Asia, the Middle East, South America and Australia. We provide competitive price, service and transportation guarantee for all construction machinery.2. How can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment.3.What can you buy from us?Road Roller, Motor Grader, Excavator, Wheel/Crawler Loader, Bulldozer, Truck Crane, Dump Truck, Forklift.4. What services can we provide?Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,Western Union;Language Spoken:English,Chinese,French,Hindi.

---
