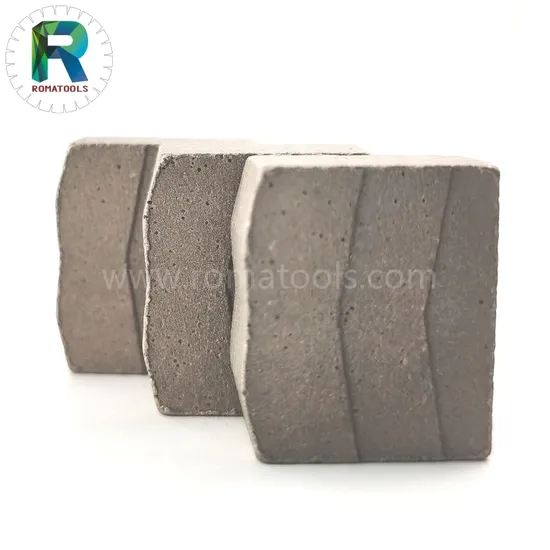

Romatools Cutter Tool V Step Design Market Segments 24X12.5/11.5X20mm Granite Cutting Diamond Segment for D3000mm

Product Description

Product Description Romatools Cutter Tool V Step Design Market Segments 24x12.5/11.5x20mm Granite Cutting Diamond Segment For D3000mm
Application: Granite, Sandstone, Basalt
Feature: Fast Cutting, No Chipping, Easy Opening, Long Life

Diameter		Saw Blank	Segment No.	Segment Dimension (mm)			Recommended Segment Size
(inch)	(mm)	(mm)		Length	Width	Height
36	900	5.0	64	24	6.6/6.0	15(13,20)	24x6.6/6.0x15
40	1000	5.0	70	24	7.0/6.2	15(13,20)	24x7.0/6.2x15
48	1200	5.5	80	24	7.4/6.6	15(13,20)	24x7.4/6.6x15
52/54	1300/1350	6.0	88	24	8.0/7.2	15(13,20)	24x8.0/7.2x15
56	1400	6.5	92	24	8.4/7.6	15(13,20)	24x8.4/7.6x15
64	1600	7.2	108	24	9.2/8.4	15(13,20)	24x9.2/8.4x15
72	1800	7.2	120	24	9.6/8.8	15 (20,25)	24x9.6/8.8x15
80	2000	8.0	128	24	10.6/9.8	15 (20,25)	24x10.6/9.8x15
86	2200	8.5	132	24	10.6/9.8	15 (20,25)	24x11.5/10.5x15
100	2500	9.0	140	24	11.5/10.5	15 (20,25)	24x11.5/10.5x15
120	3000	9.0	160	24	12.5/11.5	15 (20,25)	24x12.5/11.5x15
140	3500	10.0	180	24	13.5/12.5	15 (20,25)	24x13.5/12.5x15
5.5mm Multi				24	7.4/6.6	15(13,20)	24x7.4/6.6x15
6.5mm Multi				24	8.4/7.6	15(13,20)	24x8.4/7.6x15
7.2mm Multi				24	9.2/8.4	15(13,20)	24x9.2/8.4x15
Note: Other specifications are available upon request!

Detailed Photos
Production Application
Company Profile
Our Advantages
Packaging & Shipping
FAQ Q: Are you Factory or Trading Company?
A: We are Factory.

Q: Do you supply FREE sample?
A: Yes, but it's only for the Certified customers.

Q: What is your minimum order quantity?
A: No limited for 1st sample order, 100pcs for normal order.

Q: What's your delivery time?
A: We can finish the order within 15 days usually, 5 days for urgent order.

Q: What's your payment terms?
A: T/T, L/C, Western Union, PayPal

Q: Can we be your representative or agent in our state or country?
A: Yes, but we only think about it after 1 year cooperation.

Q: How about the shipping?
A: We shipped the sample order via DHL or FedEx, 100kgs by air, others by sea.

Q: Where is your factory?
A: Our factory is in Quanzhou, Fujian profince, Southeast of China.

Q: How can I visit your factory?
A: You can fly to Xiamen or Jinjiang airport, we will pick you up to our factory. It's about 1 hours from Xiamen, half an hour from Jinjiang.

Q: How is your quality?
A: We only use the high quality materials and very serious control systems to produce the best quality diamond tools.

---
