Automatic Electric Vehicle Minivan Body Jigs Car Welding Fixtures

Product Description

Product Description
What Are Car Fixtures?
Before painting, before the engine, chassis parts or trim (glass, door locks/handles, seats, trim, A jig is a large brace that keeps a welding project stable in the face of pressure, heat, motion, and force. A quality jig will streamline welding work by keeping parts together in a vice grip. Whether the welding is entirely manual, partially automatic, or fully robotic, a jig moves the workpiece while the tool remains stationary.
Before painting, before the engine, chassis parts or trim (glass, door locks/handles, seats, trim, electronics, etc.) are integrated into the structure. Assembling a "body in white" involves various techniques such as welding (spot, MIG/MAG), riveting, clinching, gluing, and laser soldering.

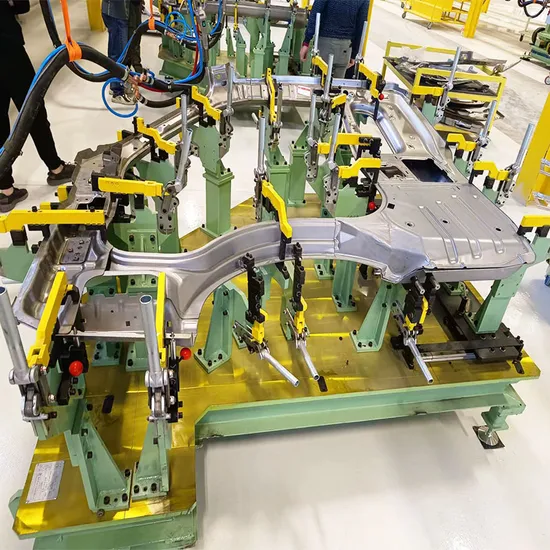

In the "Body-in-White" project, we made fixture parts for spot welding technology for various car models. Incorporate welding fixtures, vehicle body skeleton assembly fixtures, Side enclosure fixtures, underbody fixtures, Rear floor fixtures and robotic grippers, etc. Vehicle Jigs Types1. Manual car jigs 2024Manual car welding jigs are composed of fixed, moving, clamping, and other components and mechanisms, through the manual knob, handle, and other control mechanisms to complete the clamping action. Its working principle is based on mechanical principle and hydraulic principles.2. Semi-automatic car jigs 2024Based on manual jigs work, we will be equipped with automatic jigs or pneumatic jigs, which can efficiently complete the work of production, effectively improving the production efficiency, of course, the accuracy will also be improved.3. Automatic car jigs 2024The automatic clamp is an electromechanical device used in conjunction with manipulators, machine tools, and automation equipment, mainly for clamping objects and processing. Its working principle mainly includes the following aspects: Clamping/unclamping operation, Mobile operation, Detection, and control system.

We Could Design Fixtures According to Customer Needs.
Car jigs are custom-designed, and we will design the type of fixture that better meets your needs based on your production line equipment. Customized fixtures not only ensure the accuracy of body welding but also improve the efficiency of the welding process. We design fixtures with high efficiency; good quality; precision machining; good fixation of fixture devices; software automation, design automation, efficiency increased by more than 30%; design standardization, 80% of the parts are standardized in the design stage, shortening the delivery time and reducing costs. Vehicle Fixtures Composition
In general, a welding jigs tool consists of several units together to hold the car panel and is mounted on a base unit. The fixture has to be quite stable and rigid to withstand the welding stresses.
Base plate: after the assembly plate has been milled, it is inspected using three seated axes, the main job of the base is to maintain absolute balance, carefully designed to prevent distortions during welding.
Brackets: Linking substrates and positioning blocks. The sturdy that houses the workpieces to be machined. Ensure proper component placement and stability to withstand welding stresses.
Positioning block: The use of 45# steel blackening treatment, after carburisation treatment, so that the positioning block is more stable, and wear-resistant, prolonging the durability of products. These components ensure precise workpiece positioning relative to the welding tool. These elements guide the welding tool, while in fixtures, they facilitate proper tool engagement.
Clamping block: Various fastening devices that secure the jigs or fixture in the correct machine position. Used to securely hold the workpiece in its located position.Application of Fixtures
Car jigs are widely used in various fields of industrial production, mainly used to clamp the workpiece and tool, to ensure the safety of the workpiece and processing accuracy. In machining, metal processing, workshop maintenance, automation, and other fields, jigs have important application value. For example, the use of rail clamps in machine tools can effectively ensure the accuracy and stability of the workpiece, and improve production efficiency and quality; in the manufacture of large-scale machinery and equipment such as automobiles, rail clamps are also indispensable and important components, which can improve the production efficiency and quality of production. As a common industrial equipment, Jigs are widely used in various fields of industrial production because of their high clamping force, high precision, and simple operation.Product Parameters

The checking jigs we make have the following advantages:

1. Very beautiful appearance Automotive checking fixture

2. Very precise accuracy 2.1 Datum's hole's precision: +/-0.05MM 2.2 Locating Datum's precision: +/- 0.1MM 2.3 Profile precision: +/-0.15MM

Our Advantages
Vehicle Fixtures Advantage
1. Sufficient rigidity and strength: in the production process, the car welding fixtures must withstand a variety of forces, so the fixture must have sufficient rigidity and strength to apply to various forces.
2. Reliability: the workpiece in the production process, does not allow any deviation. It cannot move the positioning position of the workpiece and can not make the product shape deformation, therefore, the automotive welding fixture needs to have a high degree of reliability.
3. Flexibility: To ensure sufficient welding space, so that the operator has a certain field of vision and operating space, automotive welding fixtures need to have a certain degree of flexibility.
4. Convenience: the product can be smoothly removed after the completion of the process, without being damaged, so the automotive welding fixture needs to be convenient, easy to operate, and maintain.
5. Superior technology: the design of automotive welding fixtures requires superior technology to ensure that it can achieve the best results in the process of use.Cooperation customer
We can provide you with a complete car assembly line and welding fixtures line plant and process equipment investment planning, We have many successful cases of Customize assembly lines, and we have installed skd suv automotive assembly lines for Egyptian customers, and Russian customer's automotive assembly lines, in Dubai, South Korea, Laos, Thailand, Ethiopia, Bangladesh, Algeria, and other countries to design automotive assembly lines. please contact us to get more information
After Sales Service
China Vehicle Industry Provides One-Stop Vehicle Solutions
Kd Parts Guidance And Supply
Produce all the parts by ourselves, so we can offer you the stamping and auto parts and give you the production process guidance. Just as you want to start building your own bus/car factory, a bus/car needs more than 10,000 parts, you do not have to produce all the parts, many parts we already have ready-made molds and solutions, and we can provide good quality and cheap KD parts.
Technical Guidance And Supply
We have already directed the design for dozens of companies. According to your production plan and your local labor cost, we will reasonably suggest some necessary equipment, so that you can only spend very good money and realize your own car dream.
One-Stop Shopping Service
We provide a one-stop purchasing system to provide you with electric vehicle solutions. This will be a brand-new, epoch-making product, and you will become the most important electric vehicle manufacturer in your country
Company Profile
China Vehicle specializes in designing & building automotive fixtures & welding automation systems, it's skilled at all kinds of precision machining works: inspection equipment, welding, and assembly. Includes Whole Vehicle Cubing, Arc Welding Fixture, Spot Welding Fixture, Spot Welding Workstation, Door Fixture, Carling Fixture, Roof Fixture, and Bumper Fixture.
China's Vehicle Industry aims to popularize electric vehicles (EVs) globally. The company has developed revolutionary Multi-Purpose Platforms and digital ecosystems that are reshaping the automotive industry through innovative design, pioneering technologies, and a unique business model that covers the entire vehicle lifecycle. Distinguished by its experienced team from leading technology and automotive companies, China Vehicle Industry has designed a modular electric platform specifically engineered to maximize interior space for customizable use throughout the vehicle's lifespan, catering to diverse consumer and business needs. Certifications
We have been very successful in the automotive car assembly line machine, and we have achieved a great deal, of course, we have achieved quite a lot of certificates, such as a CE certificate, ISO certificate, and IATF certificate, and we will be according to the size of the customer's origin, the needs of the development of the program.
