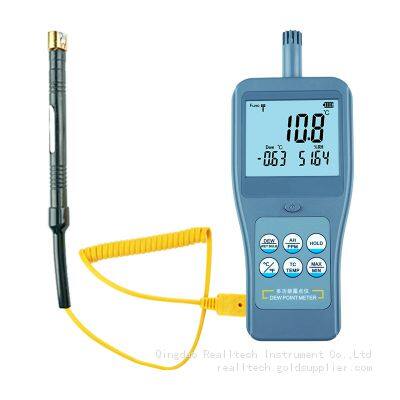

RTM2612 Digital Dew Point Meterwith Thermocouple Thermometer
IntroductionIt is a high accuracy of professional dew point meter. It is able to measure Ambient Temperature, Dew Point Temperature, Wet Bulb Temperature, Relative Humidity, Absolute Humidity, PPM and Thermocouple Surface Temperature. It can quickly respond to temperature and humidity measurements in the industrial range. It is also capable of measuring temperature and humidity in a variety of complex environments. Widely used in laboratories, precision manufacturing, modern agriculture, meteorological measurement, chemical and pharmaceutical fields.
Features • Large LCD with display. It can display three values at the same time.
• Ambient Temperature measurement.
• Dew Point Temperature measurement.
• Wet Bulb Temperature measurement.
• Relative Humidity measurement.
• Absolute Humidity measurement.
• PPM measurement.
• Thermocouple Surface Temperature measurement.
• Temperature unit (°F/°C).
• 0.01 resolution.
• High accuracy.
• With maximum and minimum values function.
• With the displayed values hold function.
• With battery indication function.
• With automatic power off function.
Specifications
Display
| Backlit LCD
|
Test Parameters
| Ambient Temperature, Dew Point Temperature,
Wet Bulb Temperature, Relative Humidity,
Absolute Humidity, PPM,
Thermocouple Surface Temperature
|
Ambient Temperature
| Range
| -30~120°C (-22~248°F)
|
Accuracy
| ±0.4°C (90~120°C)
±0.2°C (60~90°C)
±0.1°C (60~60°C)
±0.2°C (-30~20°C)
|
Resolution
| 0.01 (<100)
0.1 (Other)
|
Relative Humidity
| Range
| 0~100%RH
|
Accuracy
| ±1.5%RH (0~80%RH)
±2%RH (80~100%RH)
|
Resolution
| 0.01
|
Dew Point
Temperature
| Range
| -45~120°C (-49~248°F)
|
Resolution
| 0.01 (<100)
0.1 (Other)
|
Wet Bulb
Temperature
| Range
| -20~40°C (-4~104°F)
|
Resolution
| 0.01 (<100)
0.1 (Other)
|
Absolute Humidity
| Range
| 0-400g/m³
|
Resolution
| 0.01 (<100)
0.1 (Other)
|
PPM
| Range
| 0~50000
|
Resolution
| 1
|
Thermocouple Surface Temperature
| Type
| K-Type
|
Range
| -50~200°C (-58~392°F)
|
Accuracy
| ±1°C or ±1%Num
(Take the larger value)
|
Resolution
| 0.1 (<100)
1 (Other)
|
Temp. Unit
| °C/°F
|
Operating Conditions
| Temperature
| 0~50°C (32~122°F)
|
Humidity
| 0~80%RH (No condensation)
|
Storage
Conditions
| Temperature
| -10~60°C (14~140°F)
|
Humidity
| 0~90%RH (No condensation)
|
Power Supply
| 4×1.5V AAA(UM-4) Battery
|
Size
| 205×80×31mm
|
Weight
| 186g (Not Including Batteries)
|
Standard Accessories
Main Unit
| 1
|
TP-202 Surface Thermocouple
(K-type, φ14*230mm, -50~400°C)
| 1
|
Manual
| 1
|
Carrying Case
| 1
|
Note:
The default type of thermocouple in the standard accessories is K-type. If other types of thermocouple are needed, please specifying when placing order.
The warranty period is 12 months
>>
