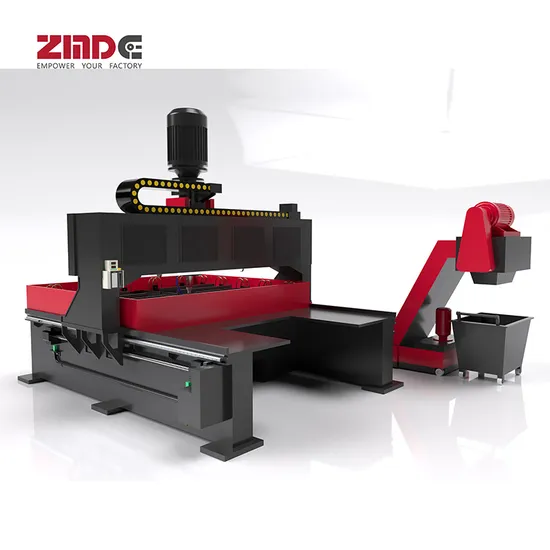

Zmde Industrial Heavy Duty Plate Drilling Machine CNC Beam Drilling Machine CNC Deep Hole Drilling Machine

Product Description

ZMDE Industrial Heavy Duty Plate Drilling Machine CNC Beam Drilling Machine CNC Deep Hole Drilling Machine

>Cost-effective Equipment <
1. Constructed from robust materials, our equipment boasts a low failure rate, minimizing maintenance costs. All critical components (ball screw, linear guide vice, hydraulic parts, electrical parts, servo motor, frequency converter, etc.) are sourced from renowned industry brands.
2. With an automatic chip removal CRT display, it significantly reduces the time and cost associated with manual cleaning.
3. The machine's high precision ensures a high qualification rate of workpieces, thereby lowering consumable costs.
>Simple Operation, High Productivity <
1. Featuring a human-machine interface, our machine offers clear visuals and generates automatic machining programs.
2. Controlled by CNC and PLC systems, it guarantees precise positioning for all tasks.
3. Hydraulic clamps secure the workpieces, while the operator uses a foot switch for convenient and labor-saving control.
4. Equipped with 12 rapid-action hydraulic clamps distributed around the table, it allows for the simultaneous clamping of four groups of workpieces.
5. Small workpieces can be clamped at the table's four corners, significantly shortening the production preparation cycle and enhancing efficiency.
6. Clamping small workpieces at the table's corners further reduces preparation time and boosts production efficiency.
> Guaranteed Quality, Wide Range of Applications <
1. Key components like the gantry, column, and table are made from solid materials, with the main machine weighing up to 6300kg, ensuring durability.
2. With a broad industry application range, this machine is essential for connecting plate processing.
3. It accommodates a wide range of drilling diameters, from 12mm to 50mm.
> Suitable for Various Production Scenarios <
1. Ideal for the continuous production of multiple batches of single flat-type workpieces.
2. Suited for small batch production of multi-species workpieces, it can process plates of various shapes-rectangular, round flange, polygonal, etc.-and handle two to four different specifications simultaneously.
3. Capable of stacking and drilling multiple layers of thinner sheets, up to a maximum of 100mm in drilled holes.
4. Utilizes upper computer software for automatic processing of start and end points, enabling drilling of through holes, blind holes, step holes, and chamfer end holes.
> Production Process Automation <
1. Integrates line board technology for high automation, automatically positioning according to the drilling program.
2. Adjusts optimal feed volume based on different hole diameters for efficient drilling.
3. Capable of automatic and continuous processing of large hole diameters, achieving one-time processing and molding.
4. Features an automatic chip removal function for seamless operation.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg

Company Profile
Founded in 2013, ZMDE Co., Ltd. is a high-tech powerhouse specializing in the research, development, manufacturing, and sales of assembly building intelligent equipment. Recognized as a national leader and one of the 'small giants' in specialized and innovative enterprises, ZMDE excels in two core industries: steel structure assembly building intelligent industrial mother machines and the Internet of Things (IoT) for various industries.intelligent control systems for dual plates.
Our corporate headquarters is strategically located in the Lingang New Area, Pudong New District, Shanghai. This facility spans 32,000 square meters and houses the cutting-edge Research Institute of Artificial Intelligence for Assembled Buildings. The headquarters oversees company management and the R&D of state-of-the-art core technologies in AI for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
Our Shandong base, situated in the Weicheng District of Weifang City, excels in the research, development, and production of intelligent industrial mother machines for both steel beams and walls used in assembled buildings.

FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)

---
