Industrial High Speed Transmission Gearbox Test Platform

Product Description

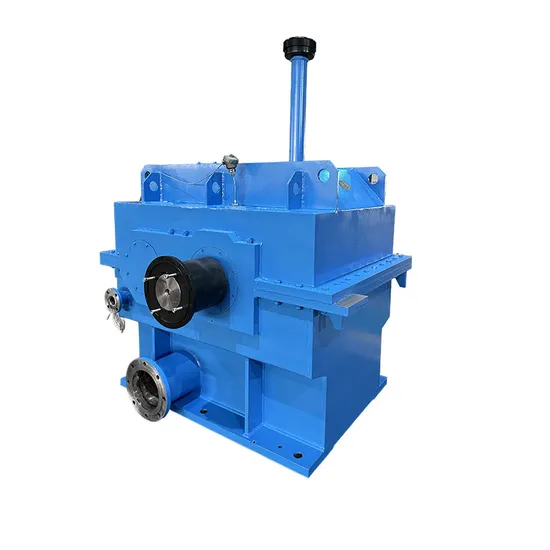

Product Description The gearbox is an acceleration gearbox used on the Atlas Copco test platform, specifically for testing high-speed gearboxes for steam centrifugal compressors. It is directly driven by a steam turbine to rotate the input large gear, and then accelerates to the pinion shaft to complete the acceleration process.
Detailed parameters are as follows: the gearbox is an acceleration structure, designed with a herringbone gear structure, with a low-speed rotation speed of 1500r/min and a high-speed shaft rotation speed of 10020r/min. The transmission power is 2400KW, the rated power is 4200KW, and the speed ratio is 6.67. The gear precision in the entire gearbox is Grade 5 of ISO1328.
