Metal C and Z Purlins Cold Formed Steel Machine Manufacturers

Product Description

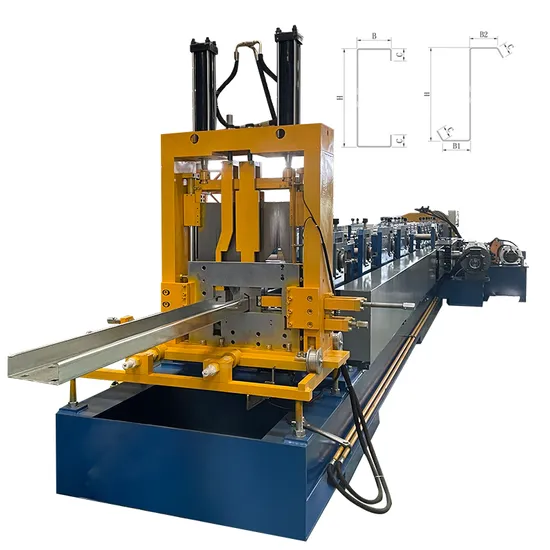

Automatic C Z U Purlin Roll Forming Machine
The automatic CZ exchange roll forming machine is a complete roll forming system designed to manufacture CZ purlins in a variety of specifications. This advanced equipment includes key components such as a passive loading frame, leveling device, automatic punching system, front shear device, main forming unit, continuous post-forming shear unit, hydraulic station, and a computerized control system. With the fully automatic CZ interchangeable section roll forming machine, you can swiftly switch between C and Z purlins in just 30 minutes. It also allows rapid size adjustments for any model between 100-300mm within 5 minutes, meeting your specific requirements with ease. The forming cutter supports continuous cutting of any model in this range without needing to change tools. Additionally, it features automatic centering and feeding port adjustments, precise fixed-length cutting, high-speed forming, reducing labor costs, and significantly boosting production efficiency.
C Z Profile Drawing:

Profile Model	C Section(mm)			Thickness
	Web	Flange	Lip
C100-300	100-300mm	40-100mm	10-20mm	1.2-3.0mm
Z120-300	120-300mm	40-100mm	10-20mm	1.2-3.0mm

We offer customization options! Whether it's profile, color, or logo, just let us know your requirements. You can either provide design drawings or simply tell us the material, profile, feeding width, and thickness, and we'll tailor the solution to meet your needs.
Technical Parameters:
Uncoiler Machine 1 set
1) Hydraulic Uncoiler
2) Coil Exterior Diameter:≤1300mm
3) Rated Load:5T
4) Material Width:50-500mm
5) Inner Diameter:450-530mm

Roll Former 1 set
1) Forming Steps:23 steps;
2) Running Speed:30m/min(without punching and cutting);
3) Main Servo Motor Power:30kw;
4) Roller Material:Gcr15/Cr12
Hydraulic Pre Cutter & Hydraulic Pre Puncher 1 set
1) Material :Cr12Mov; 2) surface treatment:CNC semi-finishing ,Vacuum treatment to 58-60HRC CNC refining.
Hydraulic Post Cutter 1 set
1) Cutting method:Multiple size cutter 2) material of cutter blade:Cr12Mov;3) surface treatment:CNC semi-finishing
Hydraulic System 1 set
1) Hydraulic Power:7.5KW; 2) Hydraulic Brand:Yuken;3) Oil Tank:120L;4) Cooling System:fan cooling.

PLC Controlling System 1 set
1) Punching Position Controlling;
2) Cutting Position Controlling;
3) Production Batch Quantity Controlling;
4) Batch Detail Quantity Controlling
Main Technical Data:

Size for C Purlin	100-300mm
Size for Z Purlin	120-300mm
Machine Dimension	11000*1800*1500mm
Machine Weight	1ltons
Material Thickness	1.2-3.0mm
Main Servo Motor Power	30KW
Forming Steps	18steps
Running Speed	0-30m/min
Hydraulic Power	7.5KW
Roller Material	Gcr15&Crl2,heat treatment,plate hard chrome
Cutter Material	SKD-11
Machine Frame Material	H-Beam with 30mm thickness

Our Service:1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. ONE-YEAR Guarantee Period:we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.
Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.

Light Gauge Steel Framing Machine >>

CZ Purlin Roll Forming Machine >>

Standing Seam Metal Roofing Machine >>

- Company Profile -
XIAMEN XINHONGHUA MACHINERY CO. LTD.(FUJIAN XINHONGHUA MACHINERY CO. LTD) was founded in 2004.as the earlier company which engaged in the manufacture of cold roll forming machines,after the reform and innovation of more than 19 years,and on basis of manufacture of modern management concepts,strong technology,advanced production technology,perfect service system,we have been currently in the domestic leading position,and as good competitor among the same industry of world. Our company is located in the beautiful scenery,nice island of Xiamen.And have variety of products with stable performance,Always pay attention to improve the existing products and research and develop the new products.We have nearly 100 kinds of professional and technical personnel,with its strong ability of product design and development,to ensure a high level design of our product.For our products with light structure, reasonable design and updating styles,so we become well-know in the steel structure industry.And our products are mainly covered the railway station,city curtain wall,stadium,etc.field and have widely used in national key construction project. High quality products, good service to our products not only sell well all over China,and exported to Southeast Asia,Europe, Africa and Australia more than 40 countries and regions.

---
