Ze650g Hydraulic Mining Crawler Shovel Excavator Fuel Efficiency Faster Boom Movements and Cycle Times Non-Def Aftertreatment Longer Undercarriage Life Qsm15

Product Description

ZE650G Hydraulic Mining Crawler Shovel excavator fuel efficiency faster boom movements and cycle times non-DEF aftertreatment longer undercarriage life QSM15 Detailed Photos
Product Description
Features
Reliable performance
The dedicated extension of the mines, the high -intensity four -wheeled area, the full protective track protection rail, and the large torque and long life walking reducer, strong and durable. Strengthening working devices, key areas use casting forging and multiple thick plate architectures. After heat treatment and ultrasonic inspection, it is strong and reliable.
High efficiency and energy saving
Zoomlio customized the imported Cononis large power engine with high -efficiency and reliable post -processing system with strong power, low fuel consumption, and low emissions to meet the national four emission standards.
Imported Kawasaki and Nabicheng Hydraulic control systems, with the Sino -Customized ESI electronics control system, to achieve the perfect match between power and hydraulic pressure, the response speed is faster, the fuel consumption is reduced by 10%, and the work efficiency is improved by 9%.
Convenient maintenance
The modular design meets the one -stop checkpoint and is more convenient to maintain; the use of long -term oil and hydraulic oil, double the replacement cycle, and the maintenance cost is lower.
Equipped with intelligent services, real -time monitoring of equipment status, and actively reminding maintenance information to achieve remote services and fault diagnosis.
Safe and comfortable
Equipped with high -intensity cabs, as well as comprehensively ensuring operational safety such as rear vision, side view camera, and non -slip plate.
Equipped with a 8 -inch large -screen display and a new human -machine interactive operating system, which is rich in functions, simple and easy to use, and improve work efficiency.
Product Parameters
Specificaitons

DRIVELINE
Emission Rating	Tier 2
Engine Manufacturer	Cummin
Number Of Cylinders
Displacement, ltr (Inches³)	6.7(409)
Rated speed, rpm	2000
Engine Output - Net, kW (hp)	125(169)
Number Of Carrier Rollers - Each Side	2
Number Of Track Rollers - Each Side	8
Track Shoe Width, mm (inches)	600(24)
DIMENSIONS
Transport Length Mono Boom, mm (ft/in)	9650(31 ft 6 in )
Transport Height - Maximum, mm (ft/in)	3370 (11 ft 1 in)
Overall Undercarriage Width, mm (ft/in)	3390 (11 ft 1 in)
Track Length On Ground, mm (ft/in)	3840 (12 ft 7 in)
Overall Undercarriage Length, mm (ft/in)	4640 (15 ft 3 in)
Tailswing Radius, mm (ft/in)	3140 (10 ft 4 in)
Ground Clearance, mm (inches)	460 (18)
Width over fixed tracks, mm (ft/in)	3390 (11 ft 1 in)
Track Gauge, mm (ft/in)	2590 (8 ft 6 in)
Digging Reach - Mono Boom, mm (ft/in)	10910 (35 ft 10 in)
Ground Level Reach - Mono Boom, mm (ft/in)	10750 (35 ft 3 in)
Dig Height - Mono Boom, mm (ft/in)	10560 (34 ft 8 in)
Dump Height - Mono Boom, mm (ft/in)	7580 (24 ft 10 in)
Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in)	7440 (24 ft 5 in)
Dig Depth - Mono Boom, mm (ft/in)	7610 (25 ft )
Standard Arm, mm (ft/in)	3610 (11 ft 10 in)
CAPACITIES
Fuel Tank, ltr (gallons (US))	360(95)
Hydraulic Tank, ltr (gallons (US))
Number Of Batteries	2
Voltage, V	24
PERFORMANCE
Ground Bearing Pressure, kPa (PSI)	39.1 (5.66)
Swing Speed, rpm	12
Swing Torque, kNm (lbf / ft)	77.5 (57150)
Travel Speed - High, kph (mph)	3.5-5.4
Tractive Force, kN (lbf)	210(47220)
Arm Tearout, kN (lbf)	114 (25628)
Bucket Breakout, kN (lbf)	150(33722)
Gradeability, %	70
End lift - 7.5m Reach, kg (lbs)	6070 (13050)
Side lift - 7.5m Reach, kg (lbs)	3760 (8070)
Total Flow, lt/min (gallons (US) / min)	448 (118.4)
Bucket Pressure, bar (PSI)	343 (4975)
Boost Pressure, bar (PSI)	380 (5511)
WEIGHTS
Operating Weight, kg (lbs)	22000(48470)

After Sales Service

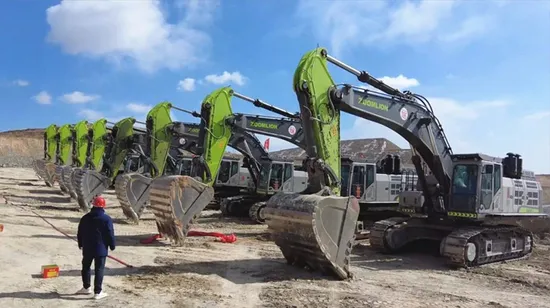

More photo of application
Our Advantages
We could supply whole machines at your one stop, or selecting best products combination for your projects, at prices a little lower prices while keeping same after sales services all over the world.
Besiders, frontless Excavators with rock ribber, Surface DTH drill rigs, Top hammer drill rigs , underground jumbos, development drill rigs, production drill rigs, bolters, scalers, LHD , dump trucks, tunneling jumbos and bulldozers also could be supplied with matched excavators.
Any more question, please feel free to contact us.

---
