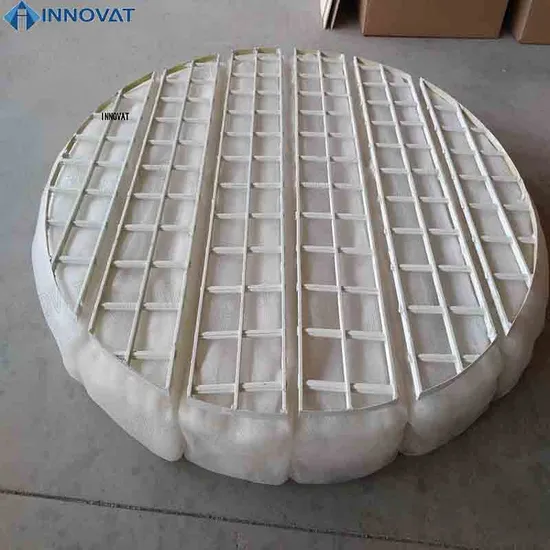

PP Demister Pad /Stainless Steel Filter Mesh/Demister Pad Wire Mesh/Mist Eliminator

Product Description

Mesh demister, also called gas liquid separator or mist eliminator or coalescing mesh pads, is a specially designed device to separate liquid droplet from vapour steams. It is mainly used to separate liquid droplets with diameter of 3μm-5μm and larger in separation towers.
Product Parameters
Mesh demister efficiency is preliminary a function of droplets size, wire size, specific surface area of the mesh, pad thickness and physical properties of the system. For a standard specification mesh demister ( wire ø 0.28 mm, density 145 kg/m³, surface area 300 m²/m³ ) removal efficiency is typically 100 % for a droplets 5 μm and greater in diameter. Higher surface area mesh demister 500 m²/ m³ using a reduce wire diameter 0.15mm can be used to improve the removal efficiency.
Mesh demister can be installing either horizontally or vertically. With horizontal gas flow through the demister the capacity is 305 greater than compared to vertical flow, thus the demister can be smaller.
Mesh pads are typically 150mm thick with 25mm thick grids on either side making on overall thickness of 200mm. Many years of experience have shown that a 150 mm pad thickness provide optimum performance in hydrocarbon process with a vertical gas flow configuration.

Item	Density (kg/m3)	Free Volume (%)	Surface area (m2/m3)	Domestic Model	Other Companies Model
					Metex	York	Becoil	Knitmesh	Vico-tex	Uop	Koch	Acs
1	80	99.0	158	H	Hi-Thtuput	931	954	4536	160	B	511	7CA
2	120	98.5	210	L		422
3	144	98.2	280	N	Nu-Standard	431		9030	280	A	911	4CA
4	128	98.4	460	SN		326			415		706
5	193	97.5	375	SL	Xtra-Dense	421	890	9033	380	C	1211	4BA
6	300	96.2	575	SM
7	390	95.0	750	SH
8	220	97.2	905	T
9	432	94.5	1780	R	Multi-Strand	333			800
10	220	97.2	428	W	Wound
11	160	96.7	5000	GS		371
Density 80 is suitable for both metal materials and plastic materials Other models in only suitable for metal materials We can provide available in virtually any size or shape, individual styles of PP demister can be supplied to meet specific customer needs.

Detailed Photos
Different Types
If the diameter is larger than 500 mm. It will be split into sections in the range of 300 mm to 400 mm
Process
QC
Installation Instructions
According to different using condition, it can be divided into upload type and download type.s
---Upload type. When the opening is located in the above of the demister pad or when there's flange above the demister pad, you should choose the upload demister pad. Diameter of
upload type is ranges from 300 mm to 5200 mm.
---Download type. When the opening is in the below of the demister pad, you should choose the download type demister pad. Diameter of upload type is ranges from 700 mm to 4600 mm.

Stock
Packaging & Shipping

---
