Yosion Technology YX-FF25 Fire Assay Melting Furnace;Heating the Sample;Muffle Furnace

Product Details

Product Description

Product Description

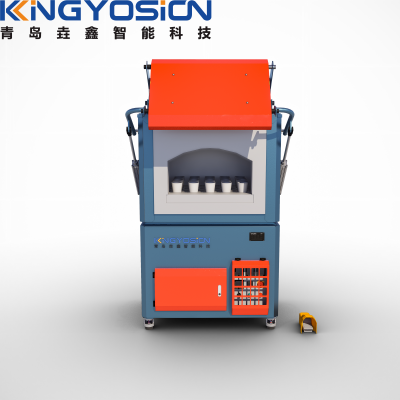

Electric Fusion Furnace
Usage Introduction:
The fusion furnace is used in the experiment and production of electronics, ceramics, metallurgy, glass, new material development and other fields. It is mainly used for melting samples in fire assay test.
Product Features:
l Easy to use.
l Heating element: 12 silicon carbon rods; continuous heating can extend the service life.
l Temperature is monitored and modulated automatically by a Type K thermocouple and Omron temperature controller, pre-set for a maximum temperature of 1200 degrees Celsius. This controller is simple to operate. It shows PV(set temperature) and SV(actual temperature) data.
Technical Parameter:

Model	YX-FF12	YX-FF25
Input voltage	380V	380V
Output voltage	90V-150V	90V-150V
Power	18kW,Three-phase	40kW,Three-phase
Muffle Size	465Wx380Dx310H(Internal) 500Wx430Dx360H(External)	600Wx570Dx303H (Internal) 660Wx610Dx360H(External)
Max. Temperature	1200℃	1200℃
Crucible specifications and quantity	Takes 12 x 50g,65g crucibles or 16 x 30g,40g,55g crucibles at one time	Takes 25 x 50g,65g crucibles or 36 x 30g,40g,55g crucibles at one time
Door Opening	Manual	Pneumatic, pipe diameter 8 mm , pressure 0.4-0.8 MPA

---
