6 Axis CNC Milling and Deep Hole Drilling Machine for Mold Cmd-1613-30.20

Product Description

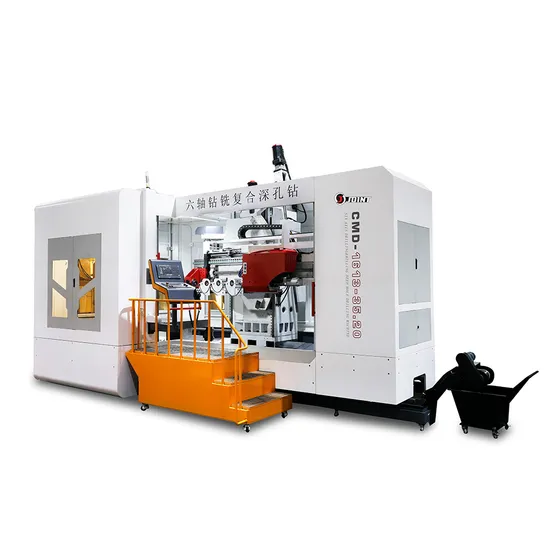

6 Axis CNC Milling And Deep Hole Drilling Machine For Mold
CMD-1613-30.20
Product Description
Diling is the most basic process in machining operation, is also the process with the most wide range in application field, however,so far there has been no such an ideal equipment to change the situation that this traditional manual processing is time-consuming and energ)y-consuming.Bench drill, miling machine, radial dill nd other traditional driling equipments have laborers' hands bound in the machine to repeat the work without quality.Security environment, efficiency and processing limis have influenced manufacturers and operators. With the arival of the CNC era,the birth of CNC depth drill has thoroughly changed the situation, it not only frees the laborers' hands, but also soves the botleneck of depth drll .rocessing,. and make it possible that one-time d rlling can achieve the processing quality of common drlling machine in drling, enlarging, expanding and also eaizes automatic chip removal, CNC positioning & automatic processing lts emergence is the pride of mechanical manufacturing industry moreover it isthe second revolution in the field of mechanical processing!
The precision CNC deep hole driling machine produced by the company is suitable for various kinds of work pieces for deep hole processing:. die &. mould industry (water transport hole, center hole, hot runner, guideroller hole, etc.); auto industry (deep hole processing in cylinder head, crankshaft, hydraulic tubing,plunger bushing, etc.); oil pump &lubricating nipple industry (deep hole processing in oil-injection gas, nozzle valve, plunger bushing, and other spare parts) ; textile machinery industry(mesopore processing of various spindles); medical equipment industry (axial processing i titanium ally , stainless steel, etc.; mine &oil machinery (deep hole processing on piston rod, cylinder wall ; deep hole processing of rotor,central spindle, valve spindle, unit outer cylinder,condenser tube plate in the industry of electrical power, steam turbine.
Standard-Configurantion Accessories
1. High pressure oil cylinder
2. Taiwan control system
3. lmport servo system
4. Magnetic chip removal machine
5. Precision castings
6. Taiwan spindle
7. Taiwan roller linear rail with precision
8. Taiwan screw ground with precision
Optional Accessories 1. Depth drill tools with specific application for grinder
2. Cutting oil separator
3. Special cutting oil
4. lmport drill gun
5. Precision guide sleeve
6. Precision rubber jacket
6 axis Gun Drilling and Milling Deep Hole Drilling Machine
Product main technical specifications: Specification

Model	Unit	6 Axis CNC Milling And Deep Hole Drilling Machine For Mold CMD-1613-30.20
Inner diameter of drilling	mm	Gun drilling processing range Φ3 ~ φ38mm, tool drilling Φ12 ~ φ50mm Optional single pipe drilling processing range: Φ30 ~ φ80mm
Size of working table	mm	1000*500
X-axis travel	mm	1600
Y-axis travel	mm	1300
Z-axis travel ( column moves back and forward)	mm	1300
W axis (machining depth)	mm	1300
B axis travel		Rotate up 20 degrees, rotate down 30 degrees
A axis travel (rotation table)		360 degree rotation
Rotary table size	mm	1200*1200
Rotary table Index accuracy		15"
Rotary table central axis runout	mm	0.015
Rotary table max. load weight	kg	22000
working table max rotation speed	r/min	2.7
Spindle speed range (stepless)	kg	50-6000
Weight	kg	38000
Demension	mm	9300*6800*5000

Processing sample

Packing and shipping Packaging & Shipping
Company Information Company Information
Company profile
JOINT, established in 1995, specialized in R&D machines for processing mold and parts, has formed ahigh quality,high performance products R&D, manufacturing, service team and rigorous and efficientoperation system.And it owns 11 series products range from manual turret milling and to CNC machiningcenter, robot, and automatic line etc which were sold out over 40 major economically developed cities in Chinaand more than 20 countries in Asia,Europe and the United States.JOINT, guided by high-quality products andorientated by the research ideal of providing high-class products to customers, has become a professionalmachine manufacturer focused on mold and part processing with a wide range of products and customization capability in China.
Core advantages
Normative and detailed process and operation mechanisms,and high standard manufacturing, testinghardware and software--chain supply and service support insures the stability of the product.Adhering toin-depth research and technical precipitation--launching rapid improvement and innovation of product andtechnology.ERP,CRM management system--forming enterprise high efficiency and continuouslyimproved system. Honesty, cooperation, innovation, win-win spirit--establishing powerful, stable supplychain, and long-term cooperated wide customer groups.
Special advantages
1,To provide more functional customized products to customers.
2,To provide CNC product applied technology support to customers.
3,To provide mold or parts processing plant equipment matching scheme to customers .
4,To provide customers with automated production line integrated solutions.

Production base
Honorary qualification
Core technology
FAQ Q1: Are you trading company or manufacturer?
A1: We are factory since 1995.
Q2: What is your terms of payments?
A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?
A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.
Q4: What is the package? Is it suitable for shipment?
A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.
Q5: How long is the warranty for machines?
A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.

---
