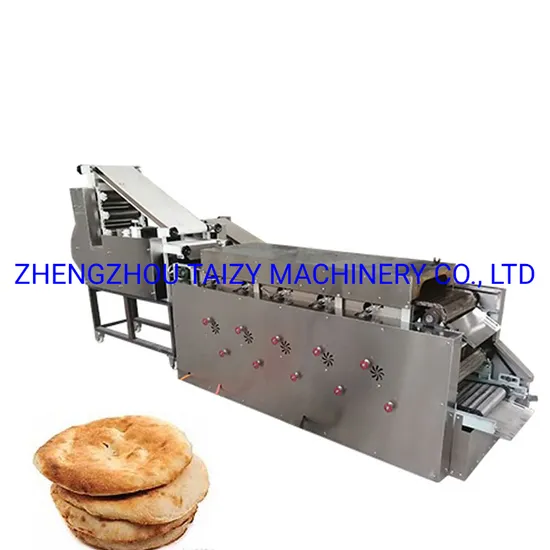

Commercial Automatic Arabic Pita Bread Roti Tortilla Making Machine From Amy

Product Description

Product Description
product introduction:
Automatic roti production line the multifunctional equipment which can produce flat bread, pita bread, tortilla, arabic bread, pizza crust, samosa wrapper etc.The pitta bread making machine, compared with the manual operation has the characteristics ofHigh efficiency, low noise, save labor and time.We accept customized product according to customers' requirements.Pita Bread Production Line includes dough mixer, dough sheeter, pita bread maker and pita oven.
Detailed Photos
Dough Mixer Operation Method:
1.Turn on the power supply, switch on, starting up to make the machine run normally;
2.Put the flour and other materials and water into the dough bucket to stir, after stirring to the requirement, pull out the plug, tilt the bucket down 90 degrees and pour out dough.

Model	TZ25	TZ50	TZ75
Capacity	250kg/h	400kg/h	450kg/h
Motor Power	2.2kw/380v	3kw/380v	4kw/380v
Weight of Machine	100kg	150kg	170kg
Dimension	850*650*900	1050*680*950	1130*720*1150

Dough Sheeter Operation Method:
1.Check whether the fasteners are loose before use. Turn on the power, rotate 5-10 minutes according to the arrow on the belt guard.
2.Sprinkle the flour on the dough at the entrance. Adjust the upper and lower roll gaps to roll the dough between the two rolls.
3.The dough is rotated and repeated several times until the desired hardness of the dough is reached.The thickness of the dough can be adjusted.
4. After each use, the machine should be cleaned, the edible oil should be coated on the surface of the roller.

Model	TZ350	TZ500
Width of dough roller	350mm	480mm
Capacity	350kg/h	500kg/h
Power	3kw	4kw
Weight of Machine	250kg	300kg
Dimension	1330*615*1060	1350*755*1240

Pita Bread Maker:
Put the dough wrapper into the hopper, roll it through roller, and convey it from the conveyor belt. The powder box sprinkles flour on the dough, and then formed by the mold roll. The scrap is transferred from the belt to the original hopper.

Model	TZ160	TZ220	TZ330
Width of dough wrapper	160mm	220mm	330mm
Speed	70-100piece/minutes	140-200piece/minutes	210-300piece/minutes
Motor Power	2.2kw/220v	3kw/220v	3kw/220v
Weight of Machine	220kg	260kg	330kg
Dimension	1200*560*1200mm	1200*620*1200mm	1200*730*1200mm

Pita Tunnel Oven:
Conveyor the dough wrapper formed by mold to the oven, it is roasted in the tunnel uniformly. The oven can be customized to two layers, three layers to make sure two sides of dough wrapper will be oven well.

Model	TZ-1
Power	1.2kw
Voltage	220v/50HZ
Weight	560kg
Dimension	2750×930×1200mm

---
