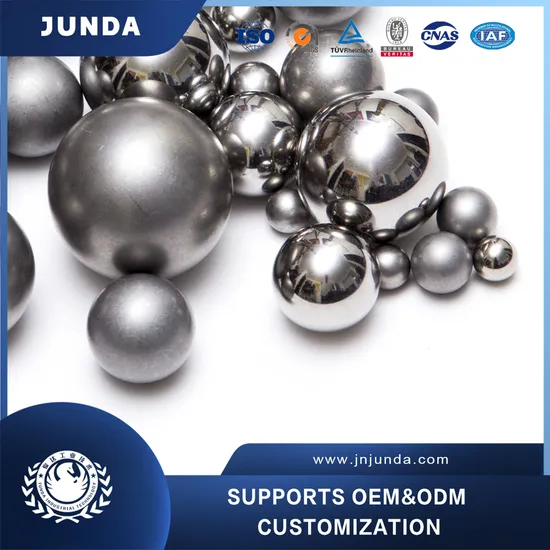

Factory Price 1mm/2mm/3mm/4mm G100-G1000 High Carbon Steel Balls for Conveyor Belt/Heavy Duty Wheel/Ball Support Device

Product Description

Product Description
Product Parameters

TYPE OF MATERIAL	C	Si	Mn	P (MAX.)	S (MAX.)
AISI 1070 (C70)	0.65-0.70	0.10-0.30	0.60-0.90	0.04	0.05
AISI 1085 (C85)	0.80-0.94	0.10-0.30	0.70-1.00	0.04	0.05

Material:AISI1010/1015
Size Range:0.8mm-50.8mm Grade:G100-G1000 Hardness:HRC:55-65 Features:have magnetic ,Carbon Steel Balls has superficial layer (case hardening), while the internal part of the ball remains soft metallographic tructure is ferrite , package often with oil . Usually electroplating when it is out of surface , it can be plated with zinc , gold , nickel , chrome and so on . have strong anti-wear functional .Comparison : the wear-resisting and hardness is not good than bearing steel ball ( The HRC of GCr15 steel ball is 60- 66 ) : so , the life is shorter relatively.
Application: 1010/1015 carbon steel ball is an ordinary steel ball,it has low price,high precision and wide use. It is used in bicycle,bearings,chain wheel, craftwork, shelf, versatile ball,bags,small hardware,it can also be used for rubbing other medium.Castors, Dressers' Bearings, Locks, Oilers And Grease Cups, Skates.drawers Slides And Window Rolling Bearings, Toys, Belt And Roller Conveyors, Tumble Finishing.
1)Raw material.
In its initial stage, the ball appears in the form of a rod or wire. Secondly, quality control makes sure that the material composition is within a good range through metallurgical testing.
2) Header.
After passing the inspection phase, the raw material is then fed through a high speed header. This forms very rough balls.
3)Flashing.
The flashing process cleans up the headed balls so that they are somewhat smoother in appearance.
4)Heat Treatment.
An extremely high temperature process where the flashed balls are placed in an industrial oven. This hardens the ball.
5)Grinding.
In this phase, we grind the sphere of the ball to an approximate diameter of the final sphere size.
6)Lapping.
The lapping of the ball brings it to it's desired final dimension. This is the final forming process to keep the ball within grade tolerance limit.
7)Final Inspection.
Lastly, the quality control department accurately measures and tests the ball to ensure the highest quality.
Company Profile
Exhibition
Packaging & Shipping
Certifications
Buyer's praise
FAQ Q : What is the mode of payment?
T/T: 50% advance payment then the rest 50% payment pay us when get the scanned B/L from our E-mail
L/C: 100% irrevocable L/C at sight
Q: What's the MOQ of your products?
As usual, MOQ 10 PCS .Or as your require,we need to calculate the new price to you.
Q: Can you provide free samples?
Yes,we can send free samples less than 0.5KG to you.
Q: What standards are you carrying out for your products?
SAE standard and ISO 9001, SGS
If any need, please do not hesitate to contact us!

---
