Best Selling Qtdm-3 Air-Tight Automatic Doors (QTDM-3)

Product Description

DESCRIPTION
*QTDM-3 Automation hermetic sliding door , both single-leaf type and double door type are available.
*The track rail is made of Al alloy, design with 2 high-tech patents. The function of air hermetization is realized through the coordinate work between the special groove corresponding to the idler pulley and the lead rail and the combined action between the special groove in the bottom of the sliding door and the small positioning pole.
with alu alloy or SS 304 cover
with frameless double tempered glass window
Door plate can be aluminum alloy ,stainless steel,HPL,etc.
PRODUCT FEATURES
* Easy for fast installation.
*Adopting Ownic exclusive high-tech patents (NationalPatent No.: ZL200520014092.5 ZL 200520014093.X),good hermetization that meets the highest grade 8 ofnational standards GB/T 7106-2008
*Unique designed handles to reduce manual openingforce when power failure.
*Operating quietly and fast, good performance insound insulation.
*The feature of environmental protection and energy saving is realized by the strong door plate and effective opening and closing system that minimize the air flux, so that the cold air and dust will be isolated outside and the temperature and wetnessinside room well kept.
*Humanized barrier free design provides the max convenience and safety to the patients and wheel barrows.
APPLICATION

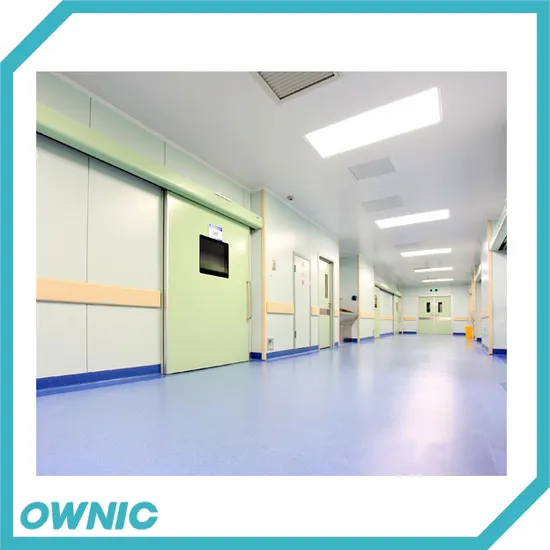

Applicable to places of high clear grade like operating rooms of hospital, medical workshops,Pharmaceutical factory,etc.
TECHNICAL DATE

Door Leaf Weight	Max 150 kg
Door width	DW=1070mm~1570mm
Opening Speed	D250~550mm/s (Adjustable)
Closing Speed	D250~550mm/s (Adjustable)
Open Delay Time	2~20s(Adjustable)
Closing Force	>70N
Manual Open Forece	<70N
Power Consumption	<150W

STRUCTURE
OPTIONAL ACCESSORIES
