2 Color Straw Making Machine Drinking Straw Extruder Line

Product Description

I. Application - With stable output and wide range of color options.
- Easy to operate. One operator is enough to run the whole line
- Cut form: Diversified cut-end: 90° /90°, 90° /45°, 90° /60°, 45° /45°, 60° /60°
- Wide application: drinking straw, lollipop stick, pen tube, cotton stick, medical tube etc.

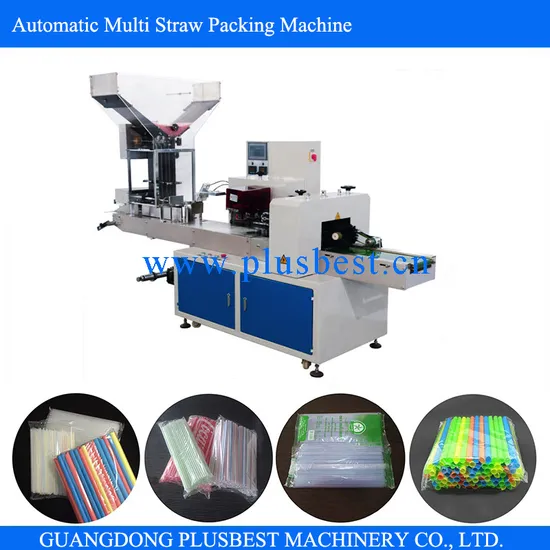

II. Machine picture
III. Technical Data

Mode No.		PB-50	PB-50/20	PB-50/20/20
Material		PP-PE	PP-PE	PP-PE
Straw Diameter(mm)		Φ2-13	Φ2-13	Φ2-13
Straw Length(mm)		≤ 300	≤ 300	≤ 300
Extruder Capacity(kg/h)		20-30	20-35	20-40
Screw Diameter(mm)		Φ50	Φ50/Φ20	Φ50/Φ20/Φ20
Screw L/D Ratio		28:1	28:1 /25:1	28:1/25:1/25:1
Driving Motor	Main Motor(kw)	7.5	7.5	7.5
	Vice Motor(kw)		0.75	0.75*2
Drag & Cutting Device(kw)		0.75*2	0.75*2	0.75*2
Vacuum Calibration & Cooling	Diameter fixing way	Vacuum soaking
	Cooling conveyor length	3.4m, 4.4m, 5.5m for choice
Total Power(kw)		15	19	24
Dimension(m)		12*1*1.5	12*1.2*1.5	12*1.5*1.5
Weight(T)		1.4	1.8	2.4

IV.About Us PLUSBEST is a professional PLASTIC MACHINERY manufacturer, supplier ,importer and exporter with scientific research, design, production and market ,which is the head office of BENYOU TECHNOLOGY located in SHANTOU CITY OF CHINA.

As the professional manufacturer, we our team have already been specializing in PLASTIC MACHINERY for making PLASTIC SHEET EXTRUDER, PLASTIC THERMOFORMING MACHINE, VACUUM FORMING MACHINE, LASER/OFFSET PRINTING MACHINE, DRINKING STRAW MACHINE, PLASTIC PACKING MACHINE, MOULDS AND AUXILARY etc. They are widely used in multi-industry of food, pharmacy, toys, chemical fertilizer, health care, electronic or hardware and so on for all over the global market.

We PLUSBEST have been enjoying a great reputation, and are going to guide BENYOU TECHNOLOGY to go ahead. Since 2022 overseas business more than 40 countries has been directly co-shared with us in Europe, South America, North America, Oceania, Africa, Middle East and Southeast Asia ,besides more countries will be being increased year by year.

With both skillful export experience and professional equipment knowledge we all PLUSBEST people are always to improve better service and innovating technology support, as well as new products introduction for customers all over the world for bright future.

Warmly welcome home and abroad friends to visit PLUSBEST.

---
