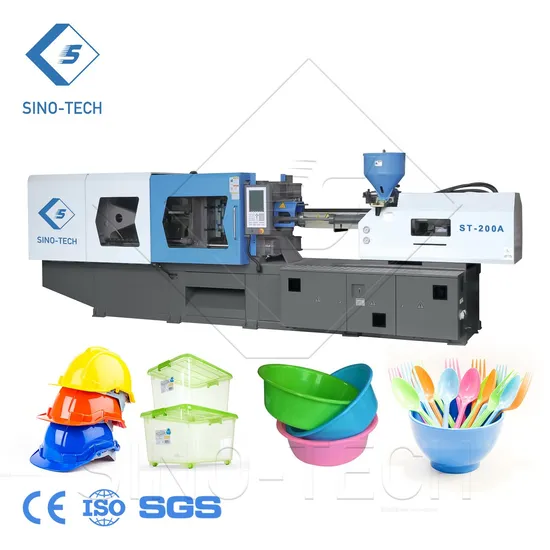

Children Lego Brick Toy Making Machine Line Injection Molding Machine Price with CE

Product Description

Product Description
Product Parameters

Item		130SElll
		1300-433
Screw diameter	mm	35	40	45
Theoretical shot volume	cc	192	251	318
Shot weight (PS)	g	175	229	289
Shot weight (PS)	oz	6.2	8.1	10.2
Length/Diameter ratio	L/D	23.4	20.5	18.2
Injection pressure	MPa	225	172	136
Injection rate	cm³/sec	93	122	154
Injection stroke	mm	200
Max. Screw speed	rpm	205
Plasticizing capacity (PS)	g/s	11.9	16.2	20.0
Injection unit force	Ton	5.7
Carriage stroke	mm	300
Clamping force	Ton	130
Max. daylight	mm	880
Clamping stroke	mm	430
Distance btwn. Tie bars	mm	410*410
Min mould dimension	mm	280*280
Mould thickness range	mm	145-450
Ejector force	Ton	4.1
Ejector stroke	mm	120
No. of ejector pins	unit	5
Max. motor power	kW	13.4
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	72
No. of heater zones	unit	3+1+1
Heater input power	kW	9.3
Ultimate capacity	kw	23.7
Current	A	32.4
Net weight	Ton	4.16
Oil filling capacity	L	200

Detailed Photos

Application

Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
