CE Approved Digital 3/6 Channel Portable ECG Machine Electrocardiograph

Product Description

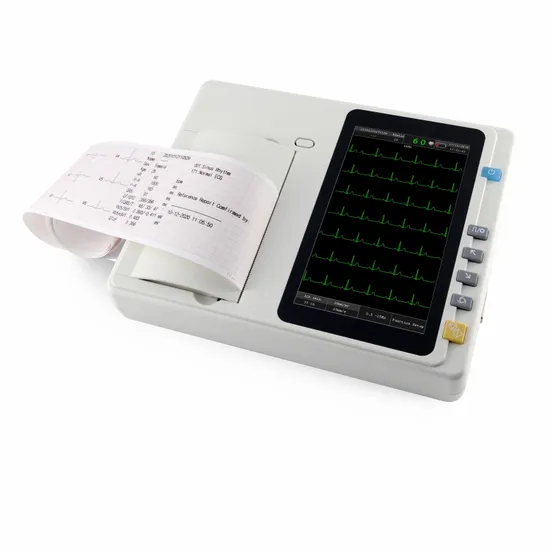

3-Channel ECG Machine (JRECG301)
Features: 7 inch high resolution color touch screen 12-lead simultaneous acquisition and display ECG Automatic measurement and interpretation function Complete digital filters, resisting baseline drift, AC and EMG interference Compact and lightweight design Support USB flash disk and micro SD card to extend memory Software upgrade via USB/SD card Built-in rechargeable Li-ion battery
Technical Specifications:

Items	Specification
Lead	Standard 12 leads
Acquisition Mode	Simultaneous 12 leads acquisition
Measurement Range	±5mVpp
Input circuit	Floating; Protection circuit against Defibrillator effect
Input Impedance	≥50MΩ
Input circuit current	<0.05µA
Record mode	Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable.
Filter	EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz DFT Filter: 0.05 Hz/ 0.15 Hz AC Filter: 50 Hz / 60Hz
CMRR	>100dB
Patient leak current	<10µA (220V-240V)
Frequency Response	0.05Hz~150Hz (-3dB)
Sensitivity	2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error:±5%)
Anti-baseline Drift	Automatic
Time constant	≥3.2s
Noise level	<15µVp-p
Paper speed	12.5 mm/s, 25 mm/s, 50 mm/s
Recording mode	Thermal printing system
Paper specification	Roll 80mmx20M
Safety Standard	IEC I/CF
Sample Rate	Normal: 1000sps/channel
Power Supply	AC: 100~240V, 50/60Hz, 30VA~100VA DC: 14.8V/2200mAh, built-in lithium battery

Standard Configuration: Main machine: 1 PC Patient cable: 1 PC Limb electrode: 1set (4pcs) Chest electrode: 1set( 6pcs) Power cable: 1 PC 80mm*20M recording paper: 1 PC Paper axis: 1 PC Power cord: 1 PC
Packing: Single package size: 32*25*17cm Single gross weight: 2.8 KG 8 unit per carton, package size: 54*33*75cm, total gross weight 22 KG
6-Channel ECG Machine (JRECG 601)
Features: 7 inch high resolution color touch screen 12-lead simultaneous acquisition and display ECG Automatic measurement and interpretation function Complete digital filters, resisting baseline drift, AC and EMG interference Compact and lightweight design Support USB flash disk and micro SD card to extend memory Software upgrade via USB/SD card Built-in rechargeable Li-ion battery

---
