High-Quality Sm/mm Fiber Optic Patch Cords

Product Description

Product Description

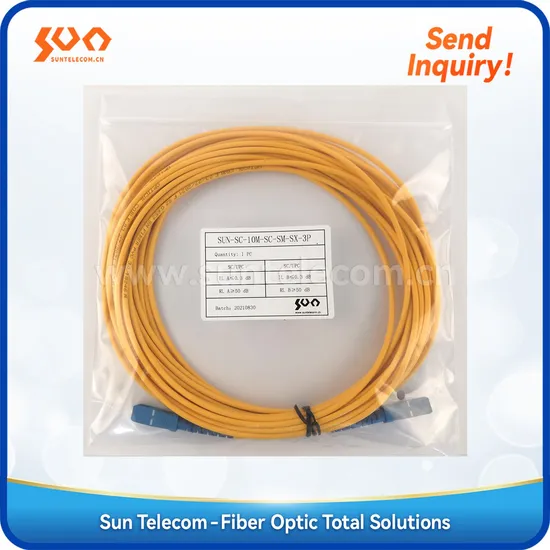

Fiber Optic Patch CordsSun Telecom's fiber optic patch cords are available in either single mode or multi-mode for various applications such as long-haul telecommunication networks, short-link systems and equipment-to-
equipment data links.
FeaturesLow insertion lossHigh return lossGood repeatabilityHigh temperature stabilityApplications Fiber optic communication systemsFiber optic access networkFiber optic data transmissionTest equipment
Specification

Parameters	Specifications
Fiber Type and Ferrule Interface Type	MM	SM
		UPC	APC
Return Loss (dB)	≥35	≥50	≥60
Insertion Loss (dB)	Typical<0.1 Max<0.3	Typical<0.1 Max<0.3	Typical<0.1 Max<0.3
Connector Type	FC, ST, SC, LC
Fiber Cores	Simplex or Duplex
Fiber Jacket	PVC, LSZH or customize
Cable Length	1m, 3m, 10m, 30m, or customize
Insert-pull Times	1000 times
Repeatability (dB)	≤0.1
Tensile Strength (kg)	≥10
Operating Temperature (ºC)	-40~ +85

Order information
