Supplier Quality Asphalt Concrete Paver RP903

Product Description

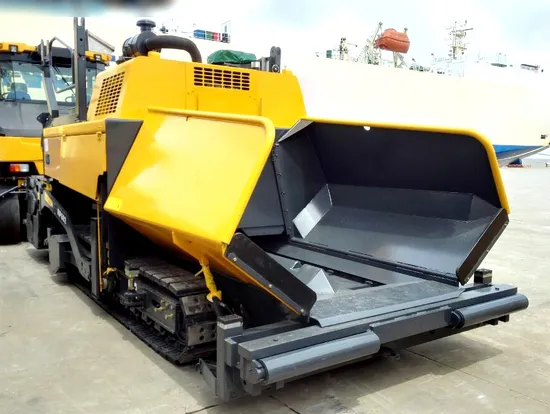

International Advanced 9m Asphalt Concrete Paver RP903 With High Dumping
Reliable drive system
It is the first set of full hydraulic drive compact type tyre asphalt concrete paver made in China. The travel, feed and material distribution system all adopt hydraulic drive, featuring good bearing capacity, high drive efficiency, and convenient control.
The plunger pump and motor all adopt products of America brand, and all the elements all adopt products of famous brands to ensure the reliability, such as control valve, steel pipe, joint, filter, etc.

Item	RP903
dimension	7150×3000×3950mm
Weight	24.3-27.2t
Driving speed	0-2.6km/h
Basic pave width	3-9m
Maximum pave width	9m
Maximum layer thickness	300mm
Maximum paving speed	16m/min
Hopper capacity	15t
Maximum laydown rate	800t/h
Rate power	162/2000 kw/rpm

Pictures
1.Excellent configuration
The key parts such as diesel engine, hydraulic pump, hydraulic motor, hydraulic valve, travel reducer, micro-computer controller, bearings, hydraulic pipe joints, hydraulic tube and hose, and filters are imported from European countries, ensuring the durability and reliability of the machine.
2.Simple maintenance
Central controlled operation features simplicity and reliability. All the operating components are installed on the instrument box, the instrument box is moveable. There are numbers on all the electrical circuits, which is convenient to check and maintain. The side cover and engine hood is easy to open, and the components that need to be maintain usually are easy to access to. The travel drive device adopts outboard cover, which is convenient to maintain.
3.Excellent performance
The maintenance-free crawler travel device composed of track rollers and rubber track shoes is durable, and doesn't damage the roads. The imported automatic centralized lubricating system prolongs the service life of the bearings in high-temperature positions, greatly reducing the amount of maintenance and improving the working efficiency

---
