Easy Operation Ycq-10L-1 Automatic Hand Injection Molding Machine

Product Description

Product Description

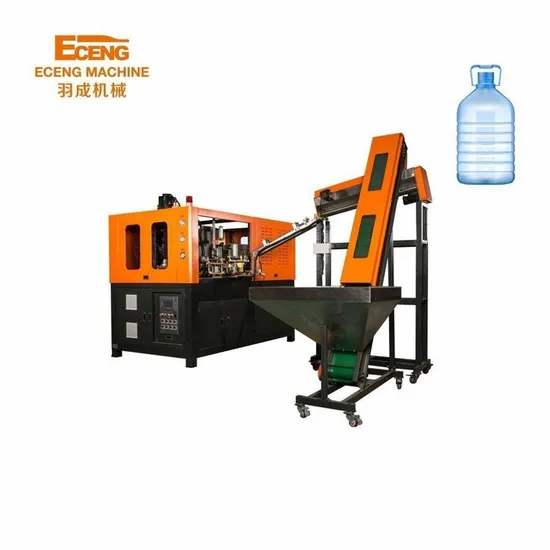

High-Cost-Effective High-Speed Fully Automatic Bottle Blowing Machine
YCQ series fully automatic bottle blowing machine is developed by our company based on the current international advanced bottle making technology. It has the characteristics of a high degree of automation, stable and reliable machine performance, simple structure, high production efficiency, power saving, low noise, and products are not polluted by intermediate links. It is widely used in the production of food, beverages, cosmetics, and medical containers.
Product Parameters

SPECIFICATION
Model	YCQ-10L-1
Bottle type specification	Cavity	1
	Theory output	600-800
	Max. volume	10L
	Bottle mouth maximum overall diameter	150mm
	Bottle biggest diameter	240mm
	Bottle maximum height	450mm
Power specifications	Light tube quantity	48pcs
	Light tube power	1.5KW
	Maximum heating power	72KW
	All electric machine installation	75KW
	Actual consumption	52.5KW
Air pressure specification	Work pressure	7-9kg/c
	Low-pressure gas consumption	1600L/min
	Blow bottle pressure	25-35kg/c
	Higher -pressure gas consumption	2000-3000Ltr/min
Frozen water specification	Work pressure	5-6 kg/c
	Temperature range	10ºC
	Consumption	8800kcal/hr
	Frozen water flow	88L/min
Machine specification	Size of the machine	2.7x1.5x1.7
	Weight of the machine	3.6ton

Detailed Photos
ADVANTAGE 1
Eceng economical hot-selling series pneumatic fully automatic bottle blowing machine, which is popular all over the world.
ADVANTAGE 2
The air circuit design action and blowing is divided into two parts, and the high-pressure bottle blowing exhaust recovery system can save 10-15% of the air source.
ADVANTAGE 3
Fully automatic high-speed human-machine interface, the whole machine runs smoothly, and the output is high and stable.
ADVANTAGE 4
The double elbow and main connecting rod hinge mechanism have strong clamping force and have the function of mold closing and pressurization during high-pressure bottle blowing.
ADVANTAGE 5
Automatic detection function, with automatic alarm and automatic fault detection and judgment kinetic energy.

FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2: Where is your factory located?
A2: Our factory, near Shanghai & Ningbo port, is located in Zhangjiagang, Jiangsu.

Q3: How about quality control in your factory?
A3: " Quality is the key point, do what customers need"
Eceng Machinery Factory focuses on quality, and quality control from beginning to end. Every piece of goods is tested strictly before packing and delivery.

Q4: How about guarantee?
A4: One-year guarantee.

Q5: Do you provide bottle blow mold and air compressor?
A5: Yes, we provide a complete system and you will not need to find a suitable air compressor chiller...etc.

Q6: What is the language of the PLC and touch panel?
A6: Don't worry, we will translate the language into English, Spanish, or any other language, to make sure you will have an easy operation.

---
