Automatic 450 Ton Plastic Chair Fruit Vegetable Basket Garbage Bin ABS PVC PP Pipe Making Injection Molding Machine Machinery

Product Description

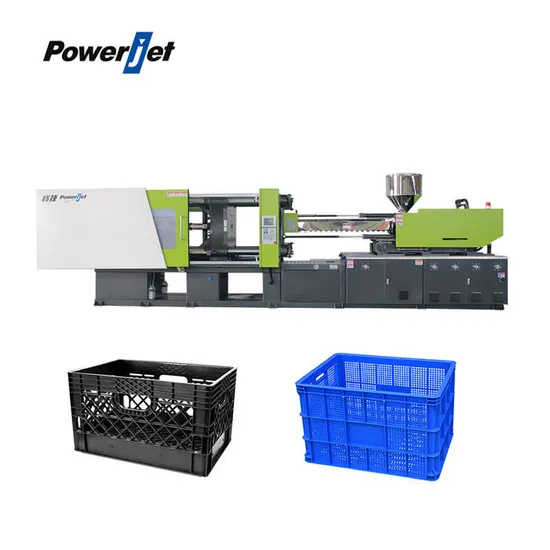

Powerjet injection molding machines especially for plastic crates, baskets

Plastic baskets as the kind of low-margin product made with recycled material, it requires high production efficiency of the machines. Powerjet has developed a special series for a product like fruit crates, baskets, etc. The Plastic Baskets Injection Molding Machine works perfectly well with the crate molds, ensuring higher production capability and stable product quality.
FEATURES:
1:Longer Screw Lift-time - Match with double alloy screw barrel, more wear-resisting, corrosion.
2:Large Shot Weight - Specially designed larger-diameter screw, not only the injection volume is large, but also reduces the charging time.
3:Shorter Cycle Time - Increase the hydraulic system, shorten the production cycle, improve production efficiency.
4:Saving More Energy - Match with efficient imported variable pump, lower the production cost.

5:More Stable - Use a new rigid frame, shock absorption is better, and resulting in more stable production.
Product Description

	DESCRIPTION	UNIT	FB450-V6
CLAMPING UNIT	Clamping force	KN	4500
	Opening stroke	mm	750
	Max.datlight	mm	1520
	Platen size	mm	1070*1050
	Space between bars	mm	760*740
	Max.mold height	mm	770
	Min.mold height	mm	300
	Ejector stroke	mm	220
	Ejector force	KN	135
INJECTION UNIT	Screw diameter	mm	95
	Screw L/D Ratio	L/D	18.7
	Injection Pressure	MPa	107
	Shot volume	cm3	2694
	Screw stroke	mm	380
	Screw speed	rpm	180
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	55
	Heater power	KW	22

Packaging & Shipping
Company Information
Our Services
Please feel free to consult us to know more information. Thanks~

---
