Injection Molding Machine Hxm658-II for The Production of Pipes

Product Description

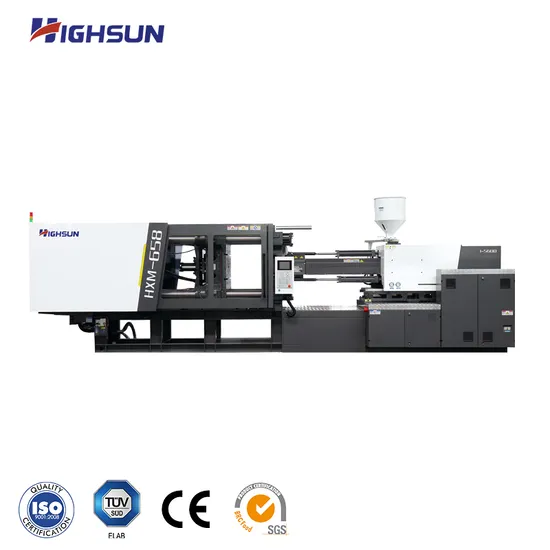

1.Picture

MODEL:HXM658-II
TECHNICAL PARAMETER TABLE			A	B	C	D
INJECTION UNIT	SCREW DIAMETER	mm	85	90	95	100
	SCREW L/D RATIO	L/D	22	21	20	19
	INJECTION CAPACITY IN THEORY150130112882	cm3	2496	2799	3118	3455
	INJECTION WEIGHT(PS)	g	2272	2547	2838	3144
		oz	80.1	89.9	100.1	110.8
	INJECTION PRESSURE	MPa	221	197	177	159
	INJECTION RATE	g/s	496	556	620	687
	PLASTICIZING CAPACITY	g/s	70	80	85	90
	SCREW SPEED	rpm	145
CLAMPING UNIT	CLAMPING FORCE	KN	6580
	MOVING MOULD-PLATE STROKE	mm	970
	MAX. MOULD HEIGHT	mm	950
	MIN. MOULD HEIGHT	mm	350
	SPACE BWTWEEN TIE-BARS (W×H)	mm	970*920
	HYDRAULIC EJECTOR FORCE	kN	227
	HYDRAULIC EJECTOR STROKE	mm	260
	EJECTOR NUMBER	n	17
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR /DRIVING POWER	KW	38+38
	HEATING CAPACITY	KW	42
	MACHINE DIMENSION (L×W×H)	m	9.52*2.27*2.65
	MACHINE WEIGHT	t	31
	OIL TANK CAPACITY	L	1136

Product Advantages:
a. Super energy saving
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor will reduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power.
b. Hiigh precision and high stability
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
c. High response and high efficiency
The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.
2.Application
3.Processing,assembling production line
5.Loading containers
6. Customer case
Client in China produce shoe for many famous companies
7.Client in Malaysia

---
