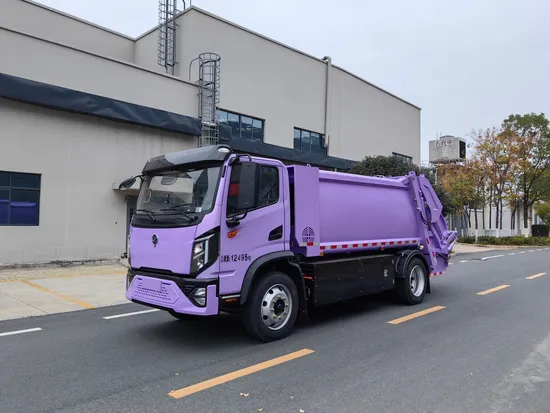

12t 8.5cbm Dongfeng/Foton/HOWO Huashen Pure Electric Compressed Garbage Truck Waste Trash Lorry Refuse Collection Compactor Transport Truck Hot Sale

Product Description

Product Description
Production Presentation
Kaili Feng compressed garbage truck is a new generation of sanitation equipment independently developed and designed by Hubei Kaili Special Purpose Vehicle Co., Ltd. on the basis of digesting and absorbing domestic and foreign advanced technology, adopting domestic first-line brand hydraulic and electric parts, so that the product performance reaches the domestic first-line level.
The compressed garbage truck has a simple, beautiful and generous appearance, excellent performance, advanced control, and is the most practical and popular garbage compression and transfer products on the market. The upper part consists of sealed compression box, filler, push shovel, hydraulic transmission system and electrical control system, adopting the market-tested hydraulic transmission, electrical control and two-way compression technology, through the automatic control system, to realize the dumping of garbage, strong extrusion, two-way pressure filling, with high pressure, good sealing, convenient operation, safety and stability, etc. It is mainly suitable for municipal sanitation, enterprises, factories, construction sites, community property, municipal sanitation, construction sites, community property, and other industries. It is mainly suitable for the collection and transportation of municipal sanitation, enterprises, factories, construction sites, neighborhood properties, institutions and colleges.
Product Parameters

Item		Parameter	Remarks
Model	Vehicle Model	CL5125ZYSBEV
	Chassis Model	CL1120JBEV
Quality Parameters	Maximum gross mass (kg)	12495	/
	Overall mass (kg)	7960	/
	Carrying mass (kg)	4340	/
Size Parameters	Vehicle size (mm)	7680×2430×2630	/
	Wheelbase (mm)	3800	/
	Front/Rear Overhang (mm)	1250/2240	/
	Front/Rear Wheelbase (mm)	1895/1802	/
Power Battery	Battery Type	Lithium iron phosphate	/
	Battery Manufacturer	Zhongxin Innovative Aerospace	/
	Battery Power (kWh)	142.19	/
Motor	Type	Permanent magnet synchronous motor	/
	Rated/peak power (kW)	120/200	/
	Rated/peak torque (Nm)	200/500	/
	Rated/peak speed (rpm)	5730/12000	/
Other	Maximum speed (km/h)	90	/
	Driving range (km)	270	isokinetic method
	Charging time (min)	35	30%-80%SOC
Top-loading parameters	Box volume	8.5 m3	/
	Stuffer volume	0.7m3	/
	Stuffer sewage tank volume	340 L	/
	Side-mounted sewage tank volume	360L	/
	Filling cycle time	≤25s	/
	Unloading cycle time	≤45s	/
	Tipping mechanism cycle time	≤10s	/
	Rated pressure of hydraulic system	18MPa	/
	Tipping mechanism type	2 x 240L plastic drums (standard)	/
		660L Tipping mechanism (standard)	/
		Semi-sealed bucket (optional)	/

Product Features Kaili Feng pure electric compressed garbage truck adopts rear loading compression technology to complete the collection and transportation of urban living garbage, large loading capacity, a variety of turning bucket (bucket) mechanism, its comprehensive performance reaches the advanced level of similar products in China. It is mainly used for collecting, compressing and transporting urban residents, communities, institutions and colleges of the barrels, bags and bulk living garbage.
The pure electric compressed garbage truck is also equipped with an intelligent control system, which can monitor the running status of the garbage truck and the filling of garbage in real time. Through sensors and data analysis, the system can automatically adjust the compression strength of the garbage truck, which not only improves the working efficiency, but also reduces the influence of human factors on garbage compression. At the same time, the intelligent control system can monitor and prompt the maintenance and repair of the garbage truck, so as to prevent failures and extend the service life of the truck.
Environmental protection and energy saving design, compressed garbage trucks in the design of environmental protection and energy saving, first of all, the garbage truck adopts electric drive system, no longer use the traditional fuel engine, reduce exhaust emissions, reduce air pollution, secondly, the garbage truck is also equipped with an energy recovery system, braking energy can be converted into electrical energy, and then supplied to the garbage truck's drive system, improve the efficiency of energy utilization, in addition, the garbage truck also adopts a lightweight design, reduce the impact of human factors on garbage compression. In addition, the garbage truck also adopts lightweight design, which reduces the weight of the vehicle and lowers the energy consumption.
Detailed Photos
Garbage truck decomposition diagram (for reference, specific in kind shall prevail)
The strength of the company Hubei Kaili Special Vehicle Co., Ltd. is a wholly-owned subsidiary of Kaili Automobile Group, with CNC machining center, welding robot, fiber laser cutting machine, CNC plasma cutting machine and other advanced production equipment, is a high-end intelligent sanitation, emergency equipment special vehicle research and development production, system integration and operation services in one of the manufacturing enterprises.


Manufacturing technique
Batch departure diagram
Honors and Qualifications
Buyer group photos

FAQ
1. Q: Are you a factory or a trading company?
A: We are a leading manufacturer of emergency rescue vehicles, special box vehicles and sanitation vehicles. Welcome to Suizhou City, China's special automobile production base.
2. Q: Where is your factory located?
A: We are located in Suizhou City, Hubei Province, China
3. Q: How do I get there?
A: Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, our company will arrange a special car to pick you up.
4. Can you make it exactly according to my requirements?
Yes. We have a professional research and development team that can produce products according to your needs.
5. Q: Do you provide the certification we need?
A: We can provide all kinds of certificates. Such as ISO, 3C and so on.
6. What are your terms of payment?
A: Telegraphic transfer is preferable.
7. Q: Do you arrange the shipment of vehicles?
A: Yes, we can arrange shipment according to the terms of trade.
8. Q: How can you help me?
A: We offer a tracking service and a one-year free warranty on all products. At the same time we provide free training and technical support to guide you to repair your products. If required, we will also air the original spare parts.
9. Q: What about the packing?
A: All the packing is up to export standard.
10. Q: How long is the delivery time?
A: According to the arrangement of the workshop, the order is usually 15 to 20 working days.
11. Q: How is the quality of your factory's trucks?
A: Our truck has obtained ISO9001:2008 and relevant certificates such as CCC, B&V, GCC, OTTC, ADR, etc. The chassis and accessories are all from the original factory and are labeled with anti-counterfeiting labels.
For other questions, we will get back to you as soon as possible after receiving your inquiry!

---
