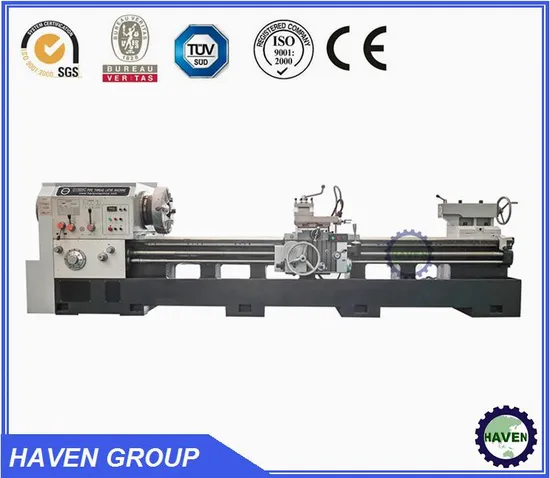

Pipe Threading Machine Q1313/1500

Product Description

Pipe Threading Machine Q1313/1500
Main features:
Oil Pipe Threading Lathe is a horizontal lathe designed for turning large-diameter pipe fittings. It has all the functions of ordinary lathes, and is professionally used for the processing of large-diameter pipes and rods. It is widely used in machinery manufacturing, petroleum, chemical industry, Coal, geological exploration, urban water supply and drainage and other industries of mechanical processing operations; The lathe is equipped with large spindle through-hole, double chucks taper turning device. This machine can process a variety of internal and external threads, including metric, imperial, taper threads, etc., can also be used for the machining of cylindrical, inner holes and end faces of shaft and disc parts.
Main specification:

Type	Unit	Q1313	Q1322	Q1327	Q1332
Max. dia. swing over bed	mm	630/800	630/800	1000	1000
Max. dia. swing over croos slide	mm	340/550	350	610	610
Spindle bore	mm	200	225	280	330
Range of machining pipe thread	mm	50-190	50-220	130-270	190-320
Max. length of work piece	mm	1500/3000	1500/3000	1500/3000	1500/3000
Max. tapper of work piece		1:4	1:4	1:4	1:4
Max. traverse of tapper device	mm	750	750	1000	1000
Width of bed	mm	490/550	550	755	755
Power of spindle motor	Kw	7.5	11	22	22
Number and Range of crosswise feeds	r/min	22kinds/0.02-0.45	32kinds/0.04-0.65	40kinds/0.05-1.5	32kinds/0.05-0.75
Number and range of spindle speed	r/min	12steps/24-300	12steps/20-460	12steps/16-380	9steps/7.5-280
Number and range of Lengthways feeds	mm	26kinds/0.07-1.33	32kinds/0.1-1.46	40kinds/0.1-3	32kinds/0.1-1.5
Number and range of metric thread	mm	24kinds/1-14	21kinds/1-15	30kinds/1-30	23kinds/1-15
Number and range of inch thread	teeth/inch	40kinds/2-28	26kinds/1-14	27kinds/1-28	22kinds/2-28
Screw pitch	inch	1/2	1/2	1/2	1/2
Saddle rapid traverse	mm/min	4000	2500	3740	3740
Cross slide rapid traverse	mm/min	2300	2000	1870	1870
Max. traverse of saddle	mm	1310,2810	1110	1500	1500
Max. traverse of cross slide	mm	390,490	360	520	520
Max. traverse of turret	mm	200	200	300	300
Size of tool section	mm	30x30	30x30	45x45	45x45
Max. rotation angle	°	+/-60°	+/-60°	+/-90°	+/-90°
Amount of movement on cross slide dial	mm/scale	0.05	0.05	0.05	0.05
Amount of movement on turret	mm/scale	0.05	0.05	0.05	0.05
Dia. And type of tailstock quill	mm/mores	100/m5#	100/m5#	140/m6#	140/m6#
Traverse of tailstock quill	mm	205	250	300	300
Cross amount of movement of tailstock	mm	+/-15	+/-15	+/-25	+/-25
Overall dimensions (LxWxH)	cm	365,515x144x139	330x145x150	460x220x152	500x210x160
Net weight	kg	4440,5290	4500	10000	11500
Chuck		4-jaw 520	4-jaw 520	4-jaw 800	4-jaw 800

---
