Hot Products Plastic PE Pulverizer Machine PE Milling Machine PVC PE PP EVA Recycling Material Grinder Machine Plastic Machine PVC Milling Machine

Product Description

Keep on going for new technology on plastic extrusion is our target. Welcome to contact us!
Goods Description New design Plastic grinding /plastic pulverizer/Miller/ Milling machine
Here are two types of Plastic Pulver,
1. Blade type.
The new series plastic pulverizer mainly used in the field of hard PVC recycling, for example in the recycling of pipes and profiles to grind PVC waste, and the powder produced will be mixed with new PVC materials, and then used in the new extrusion production of pipes ,profiles, boards.
The machine is mostly suitable for the PVC raw material with higher percentage of CACO3 as filler.
Here is the machine Technical Parameter,

Specification	SMP-500	SMP-600	SMP-800
Blade Quantity	1 set	1 set	1 set
Rotation speed	2950rpm	2950rpm	2950rpm
Motor	37Kw	45/55Kw	75/110Kw
Prodution output	80-280Kg/h	150-480kg/h	300-880kg/h
Finess	20-80 mesh	20-80 mesh	20-80 mesh
Weight	1280kg	1680kg	2880kg

Advantages:
a. compare with similar Pulverizer, the output is greatly improved at the same power(increaded by 20%-50%) ,and saving energy.
b. The dust collector is added to reduce dust pollution effectively.
c. Automatic regrinding fuction reduced the labor intensity.
d. The door cover of machine can be opened, it is convenient to do maintenance and blade/knife replacement.
e. The wind-water cooling system is adopted to reduce the working temperature of machine, which make the material abrasive not easy to be changed.
f. Adjustable powder screen(20-100mesh).

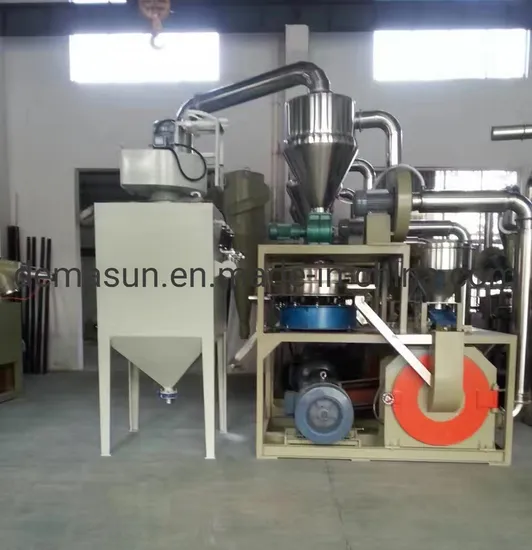

2. Disk type.
MF series grinder/miller/pulverizer can grind various theremoplastic material economically and efficiently at normal temperature. It can produce high-quality powder(free-flowing powder with high bulk density) for rotational molding applications. Such as the material of PE, PVC, PP, ABS, PA, EVA, PET, PS, EPS,PC, Foam, cowhide,etc.
Our MF series grinder/miller/pulverizer mainly usedf for grinding PE in the rotational molding industry. In this process, a virating screen must be used to ensure that the powder with uniform fineness is screened.
It is mainly used for PE, PP,PET,ABS pellets/flake,etc, and also for PVC pellets with lower percentage(within 50%) of CACO3 as filler.
Application field,
1. Fine plastic recycling.
2. Engineering plastic mixing.
3. Extruded plastic recycling.
4. Composite plastic production.
5. Proudction and recycling of rotational molding powder.
6. Plastic pipe, board crushing and recycling.
Technical Parameter,

Specification	MF400	MF500	MF600	MF800
Main Motor	22kw	37kw	45kw	75kw
Blade Diameter	Φ400	Φ500	Φ600	Φ800
Draft Fan	4kw	5.5kw	7.5kw	11kw
Rotary Valve	0.75kw	0.75kw	0.75kw	1.1kw
Production output	50~300kg/h	80-500kg/h	120-800kg/h	200-1200kg/h
Dimension	2800*2600*3700mm	3000*2800*3900mm	3200*3000*4200mm	4000*3500*4500mm

Adavantages,
a. Simple adjustment of grinding disc clearance.
b. Easy to do maintenance and control.
c. Automatic regrinding coarse powder.
d. water-wind dual cooling system.
e. Provide differenty types of grinding disc configurations.
f. Maximum powder size distribution control.
