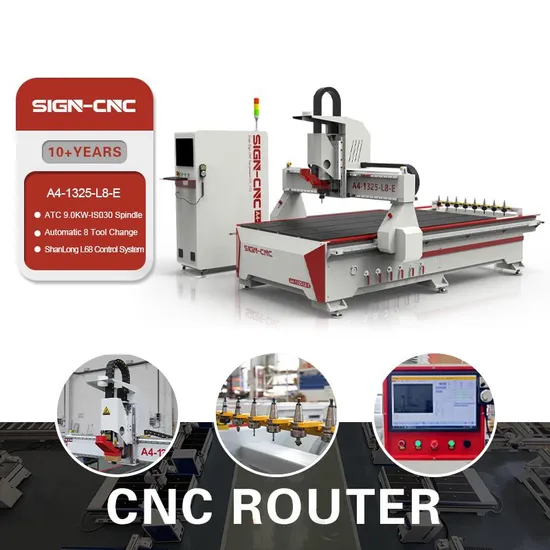

CNC Machine Vacuum Table CNC Woodworking Machinery Syntec 60W System Router Machine 1500X3000mm

Product Description

Cnc Machine Vacuum Table Cnc Woodworking Machinery Syntec 60w System Router Machine 1500x3000mm
Technical Parameters:

Model	A4-1325/1530-L8
Working area	1300*2500mm/1500*3000mm
Z feeding	300mm
Frame structure	Steel casting-welding
Type of table cover	Vacuum table with T-slot
Vacuum pump	5.5kW/7.5kw air cooling
Z axis transmission	High precision 25mm square guide rail and ball screw
X Y axis transmission	Helical rack and high precision 25mm squar
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
Command Code	G code * .u00 * .mmg * .plt
Operating voltage	AC 380V/50Hz
Spindle power	HQD 9.0KW ATC air-cooled ISO30-ER32 spind
Type of cooling	Air cooling
Spindle Speeds	0-24000rpm/min
control system	Syntec 60WE bus control system
Inverter	Delta high frequency 11KW inverter
Reducer	Japanese Shimpo planetary reducer
Working Voltage	AC380V/50/60Hz
Supported software	Artcam software, Type3 software
Operating conditions	Humidity: 30% -75%, temperature: 15 - 45 degree
Warranty	One year

Application:
Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.
Woodworking: Furniture production, three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint doors, screens, craft fan window processing, shoe polisher, game cabinets and panels, mahjong table, computer desk and furniture products, auxiliary processing .
Mold Industry: engraving copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.
Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry.
Materials:
Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
Packaging & Shipping
Company Profile
FAQ
1. Q: How do you send your machine?
A: We can send our machines by sea, land and rail way, or we can send the machine to your doors.
2. Q: This is my first time to use this machine, is it easy to operate?
A: Machine operate is easy and we will send to you manual for system manual in English. And if you have question for use it we also can send to you video that show how to use machine.

---
