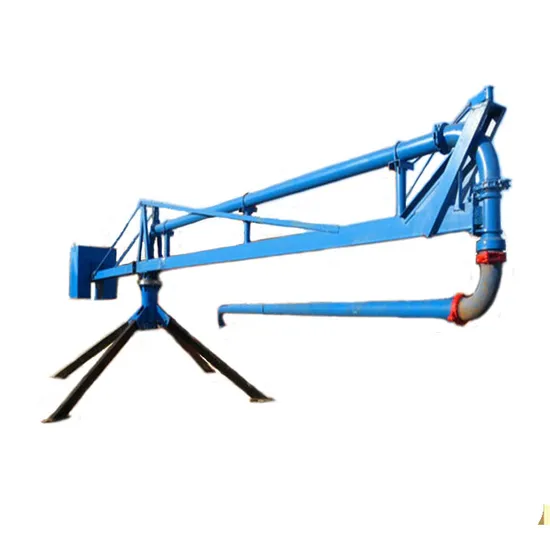

Concrete Spider Placing Boom Machine for Construction Builders

Product Description

Product Description

Model			HGY15
Permance	Horizontal reach(m)		15m
	Rotation(°)		360°
	Elevation angle(°)		0~90°
	Slewing brake		Normally closed
	Working environment temperature		-5ºC~40ºC
	Weight(T)	Weithout counterweight	3.23
		Counterweight	5.43
	Outrigger Span		4000×4000
Control System	Power		380V/50HZ
	Output(kW)		4
	Ptotection grade		IP54
	Insulation clas		F
	System Pressure(MPa)		20
	Control mode		Cable/Radio remote
Boom	Duct cleaning method		Wash/Dry cleaning
	Boom open way		Three R
	Inner diameter of delivery pipe(mm)		Φ125
	End rubber hose(m)		3
	Length(mm)		6000/5000/4000
	Corner(°)		90/180/180

HGY15 concrete placing boom is composed of boom assembly, slewing mechanism, lower frame, rear bracket, counterweight, concrete pipeline, hydraulic system and electrical control system and other components. The extension and folding of the three-section arm is manipulated by the hydraulic system, and the slewing action of the slewing mechanism is matched to make the end of the concrete delivery pipe extend to the construction point that needs to be poured.
The HGY15 placing boom adopts a concrete conveying pipe with a nominal inner diameter of Φ125mm (according to JJ83-91 standard). The hydraulic system is equipped with a safety overflow valve to prevent overloading of the working mechanism. A hydraulic lock is installed on the working cylinder to ensure construction safety. The electrical control system can realize control cabinet panel operation and wired remote control operation. There are interlocks between each operation mode to ensure construction safety.
The equipment needs to be hoisted in place with the help of a crane. Before hoisting, it should be confirmed whether the lifting performance of the crane meets the requirements.
Concrete pouring machine boom placer Main Features:
1. It can be placed in suitable places required without being fixed.
2. It features compact structure ,light weight and can be lifted as a whole by a crane.
3. With excellent maneuverability,it can meet the requirements for concrete placement on different jobsite ,and is ideal for concrete pumping and placing.
4. Easy operation,reliable safety and economical purchase.
5. It can be drived by people and are flexibility .

---
