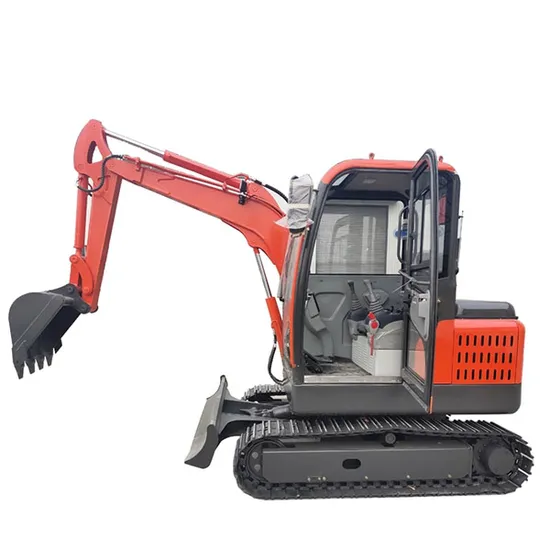

Hot Selling with Premium Engine 3 Ton Digger Mini Hydraulic Excavator

Product Description

3 ton Excavator (30)
Product Parameters

Machine Size Overall dimension (L*W*H) 4170 * 1300 * 2280mm Axle base(Track length on ground) 1230 mm Track gauge 1070 mm Min.Ground clearance 230 mm Swing radius at tail 1180 mm Track System Maximum Travel speed 3.5 km/h Width of track shoe 230 mm Number of track shoe per side 38 pcs Number of upper roller per side 0 Number of bottom roller per side 4 Performance Parameter Standard bucket capacity 0.1 m³ Swing speed 12 rpm Max. Grade ability 30° Max. Bucket digging force 15.3 KN Max. Arm digging force 10.5 KN Hydraulic system pressure 18 Mpa Machine weight 2500 kg Arm length 1000 mm Engine Emission Standard Euro5/ EPA Engine Model KUOBTA Power/Rotation speed 14.2kw (20HP )2000 rpm Optional Engine China Laidong 22.1 kw, 2300 rpm Number of cylinder 3 Working Range Max. Digging height 3700 mm Max. Dumping height 2290 mm Max. Digging depth 2450 mm Max. Vertical digging depth 2160 mm Max. Digging radius 4370 mm Min .swing radius 2020 mm Max. Lifting height of blade 240 mm Max. Cutting depth of blade 310 mm Boom swing angle(Left) 75° Boom swing angle(Right) 45°

Product Description
*High fuel efficiency,Super power
*Lower fuel Consumption,High configuration, Superior performance
*Saving energy and protecting environment
Detailed Photos
Company Profile

Packaging & Shipping
FAQ
1.What kind terms of payment can be accepted?For terms of payment, L/C, T/T, Western Union (can be) could accepted.2. What certificates are availble in Machinery?For the certificate, we have ISO,EPA,SGS and CE.3.What about the delivery time?7-20 days after receiving the deposit.4.What about the warranty time?12 months after shipment or 2000 working hours, whichever occurs first.5.What about the Minum Order Quantity?The MOQ is 1 pcs.
6.How to show your manufacture to customers?It depends on you,if you have time,you can come to visit our manufacture. If you do not have time,then we can have vedio call,then show you around our workshop. Our workshop is working from 8:00 am to 5:00pm in Beijing Time!

---
