Automatic Fabric Ribbon Roll to Roll Screen Printer Textile Label Screen Printing Machine

Product Description

Automatic Fabric Ribbon Roll to Roll Screen Printer Textile Label Screen Printing Machine
Application:
For mass-printing label such as heat transfer label, washing label, garment label, clothing label mostly, Mobile phone touch screen, Solar cells, Flat screen televisions Touch panels, Circuit boards, Printed electronics, RFID, In-mould transfers switch panels Membrane switches, Flexible circuit boards, Miniature circuits on ceramics, Smart fabrics industry as well Features
According to the printing speed 1500 impressions/hour, a stencil design has ten label patterns, six colors need to print, 8 hours a day, and 20k pcs labels can be printed in one day.
High level of automation, only one worker operate the whole printing line High printing accuracy, 1-10 colors overprint can be done by the full automatic screen printing machine High productivity, production capacity equal to six sets of the semi-automatic screen printing machine Carry a vacuum table with air suction to fasten PET film to ensure overprinting precision Equipped with three photocell sensors for automatic registration in X-Y directions, carrying the exclusive technology We have vacuum suction drawing technology, no need for crimping, and the wasted length is controlled within 2 mm. Machine Parameters:

Model			LTA-3040		LTA-5060		LTA-6080
Max. Printing Size			300x400mm		500x600mm		600x800mm
Printing Speed			0~5000 print/hr.		0~2500 print/hr.		0~2500 print/hr.
Max. Screen Frame Size			600x800mm		800x1000mm		900x1200mm
Frame Adjusting Variable			60mm		60mm		60mm
Max. Substrate Width			320mm		520mm		620mm
Registration Accuracy			±0.01mm		±0.01mm		±0.01mm
Air Source			0.4~0.6mpa		0.4~0.6mpa		0.4~0.6mpa
Power			220V, 3KW, 15A		220V, 3KW, 15A		220V, 3KW, 15A
Printing Material Thickness			0.02~0.5mm		0.02~0.5mm		0.02~0.5mm
Weight			600kgs		700kgs		950kgs
Overall Dimensions (L*W*H)			7000x1100x1900mm		8200x1200x2000mm		9000x1350x2200mm

Machine Photos:

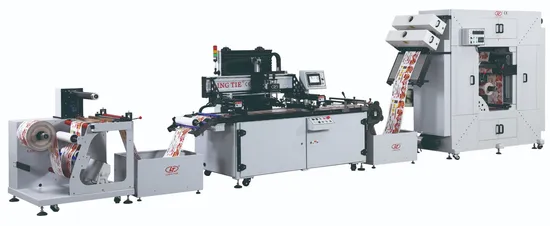

Automatic Roll to Roll Screen Printing Machine includes a feeder, a screen printing unit and a hot air dryer.
feeder: dust removing, protect film removing, electrostatic eliminating,etc.
inspection station: Timely inspection of printing quality to avoid waste.
Automatic Registration Function: Independent research and development of three-point alignment system to
ensure the accuracy of overprint.
Print Head:High precision and high reliability components of the printing head, ensure the stability of the machine.
Rewinding Shaft: After printing, through the tunnel oven drying, automatic rewinding at last.
Printed Samples:
enterprise honor:
Workshop:
Exhibition:
Our Team and Customers:
Machine Package:
Automatic Roll to Roll Screen Printing Machine is packed in wooden box for delivery by container.

---
