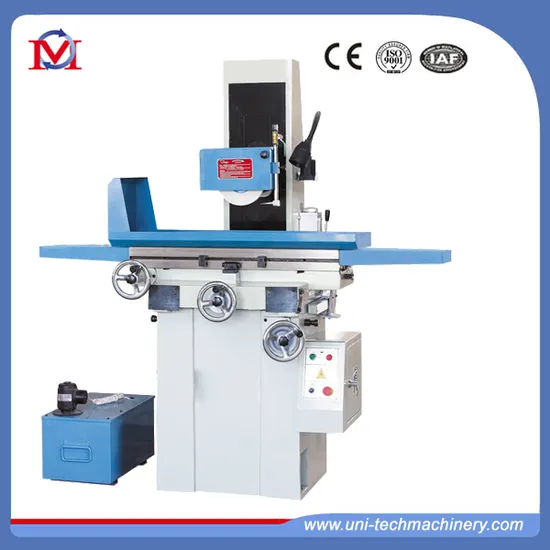

China Manufacturer Manual Surface Grinding Machine (M820)

Product Description

China Manufacturer Manual Surface Grinding Machine (M820)
FEATURES of our manual surface grinder:
1.Quality castings and Precision ball bearing supporting the spindle
2.Coolant system with nozzle and flow control valve
3.Cast iron machine body and stand for maximum rigidity and smooth operation
4.Vertical dial graduations 0.01mm
5.Cross travel graduations 0.02mm
6.Manual one shot lubrication pump
7.Wheel balancing stand and arbor
8.Halogen work light
Standard accessories:
Tool box
Balancing stand balancing bar
Flange wrench
Screwdriver
Balancing screw
Open-end wrench
Inner hexagon spnner
Wheel dresser holder
Wheel dresser
Machine flange
Wheel flange
Chuck
Optional accessories:
Tilting permanent chuck
Demagnetizer
Overhead parallel dresser
Angle dresser
Radius dresser
Precision vice
Dust suction device
Digital readout system
Working light
Wheel flange
Specification:

Model				M618A	M820
Working table	Table Size (L× W)		mm	460×180	480x200
	Max movement of working table(L× W)		mm	500×190	530x220
	T -Slot number×width		mm	1×14	1×14
Grinding head	Max distance from spindle center to table surface		mm	335	450
	Wheel Size(Outer diameter×width×Inner diameter)		mm	φ180×13×Φ31.75	φ200×20×Φ31.75
	Wheel speed	50HZ	r/min	2850	2850
Table slide -way			/	V-type rail with steel-ball	V-type rail with steel-ball
Feed amount	Vertical feed on handwheel	Per revolution	mm	1.25	1.25
		Per graduation	mm	0.01	0.01
	Cross feed on handwheel	Per revolution	mm	2.5	2.5
		Per graduation	mm	0.02	0.02
Motor power	Spindle motor		kw	1.1	1.1
	Coolant pump motor		kw	0.4	0.4
Weight	Net		kg	650	700
	Gross		kg	750	800
Overall dimension(L×W×H)			mm	1550x1150x1590	1680x1140x1760
Package dimension(L×W×H)			mm	1000x1150x1760	1140x1250x1940

Warranty:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
Welcome to contact us!
Canthy Guo
Tengzhou Uni-tech Co. Ltd
Tel:0632-5810216 Fax: 0632-5810216

---
