Nylon 66 Cable Tie Mould Injection Mold Custom Plastic Part Injection Molding Product

Product Description

ENJl Mold was founded in 2011, is a professional production of injection mold enterprises. The company has been providing our customers with a high level of mold manufacturing and China's most advanced injection molding technology one-stop solution, to provide you with industrial design rapid prototyping, mold manufacturers and plastic molding final product development and supply.
We specialize in the production of precision molds, custom injection molding, integrated assembly. We are committed to providina responsive, solution-driven iniection moldina services, We have advanced CMM. CNC machine tools, EDM machines, wire cutting machines and other common machine tools. injection machine from100 tons to 650 tons.
We can injection almost any kind of plastic, such as ABS, PC, PBT, TPE, PP, PMMA, PPSnylon and so on. We produce moulds with P20,718H,2344,2738, NAK80,H13 (HRC 52-54). 420 SS(stainless steel) and other full hard moulds, or according to customer requirements.
Our mission is to help our customers get their products to market faster than their competitors in the most cost-effective manner, lf you need help with new product development or plastic product desian. Our team will work with you to bring your products to market faster.

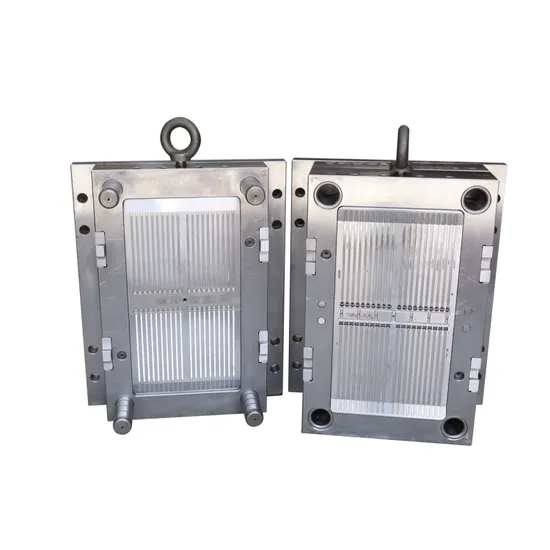

Mold name	Cable tie mold
Product size	7.2*250 mm
Product Description	Cable tie mold
Cavity	24 cavity
Mold size	680*360*350
Suitable machine	SE-360T IV
Main material of mold	DC53
Injection system	Cold runner
Mold injection system	ejector plate
Mold cycle time	18S
Mold life	1.5 million
Delivery time	60 days working
Mld features	fast speed ,long life ,good cooling

We have a design team with more than 20 years of working experience,familiar with the mold design standardsin China, Europe, America, Japan andso on, can skillfully use a variety of software for mold and product design.
We are an international company specializing in the development,design, manufacture and export of high quality injection molds. Our markets include the United States, Canada,Australia, New Zealand,Russia.Germany, the Southern United States,Brazil, Peru, Colombia and so on.
We strive to provide our customers with the best quality, best service and best price.

Equipment Name	Model	Sets	Supplier/ orgin
BridgeCoordinateMeasuring Machine	Inspector 10.25.08	1	China
Portable Arm Coordinate Measuring Machine	Infinitr 2.0	2	China
Multifunction Horizontal CNC Deep Hole	DHD 1007-10S	1	China
Wire-Cut EDM	Ca20	3	China/Taiwan
Hole Drilling EDM	Sa30	3	China/Taiwan
Wire cut	Normal Wire EDM	12	China/Taiwan
Slow Wire cut	Sodick Precise Wire Cutting	2	Japen
Mirror EDM	Precision EDM	4	Japan/China
CNC Vertical Machining Centers	VB-2516	2	Germany/China/Taiwan
CNC Milling Center	VB-1690	10	Germany
High Performance Milling Center	3axis:1500*1000*750	6	Italy
Grinding Machine	Small Digital Grinding Machine	8	China /Taiwan /Japen
Mould Pressure Machine	320T,200T	2	China
Injection Machine	90T-1000T	7	China

We define quality as total customer satisfaction.Quality control is very important to each Mould proiect.
We use advanced measuring facilities and well-constructed quality control svstem to control every process of design,production and quality check efficiently.
1.Mould Steel Hardness,Dimension Inspection
2.Mould Electrodes inspection
3.Mould Parts Dimension inspection
4.Mould Pre-Assembly inspection
5.Mould Trial Report and Samples Inspection
6.Mould Shipment Final inspection

---
