2025 Bcmc Hualong Machinery CNC Bridge Stone Cutting and Milling Machine Glass Cutter Bridge Saw 5 Axis Countertops 3D Marble Granite Cutter

Product Description

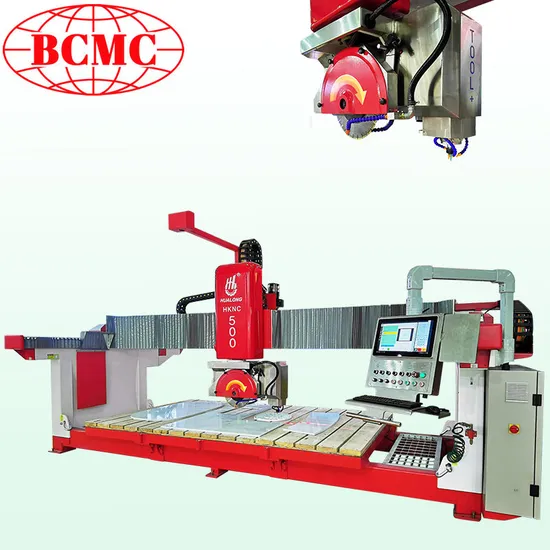

HUALONG Machinery BCNC-500+ is a kind of multifunctional manufacturing machine for slab cutting, milling, drill, carving. Can handlling different kind of difficult work in one machine. Equiped with CNC touch screen system, USB port, WIFI connect, photograpging camera and vacuum lifter. Ideal for kitchen top, cooking bench, marble, granite and artificial stone processing. It's your good partner for slab processing.
HKNC-500+ with 5 axis interpolation controlled, is a multifunctional CNC stone cutting, shaping and engraving machine built with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.
Functions:
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make all kind of cuts with ease. HKNC-500 can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Main Features
Equipped with 5 interpolated axis which can move in X, Y, Z axis together with the cutter head turning and rotation in one time. Updating with vacuum lifter to move the slab easily. CNC touch screen control system. Easy control and easy interactivity. Photograohing camera equiped. Helps for slab positioning and typeseting. Save time and reduce the waste of processing. Multifunctional processing function which can doing the complex work of cutting, milling, drilling and carving and even the curved surface processing. Cutter head can moves in 90 degrees up and down. Rotate in 360 degrees horizontal. Handling chamfering cutting at any angles in automatic. USB and WIFI connection. Easy to connect and upload your CAD/CAM files to the machine.
Parameter:

Configuration	Diameter of saw blade	mm	Φ400 - Φ500
	Dimension of working platform	mm	3500*2000(2100) mm
	Power of main motor	kw	26.4
	Power of tool slide reciprocating motor	kw	2
	Power of crossbeam shifting motor	kw	1.1
	Power of hydraulic station motor	kw	2.2
	Power of elevator motor	kw	0.85
Main Performance Parameters	Max. length of horizontal cutting	mm	3300
	Max. thickness of cutting	mm	140
	Max. lifting travel of cutter	mm	250
	Water consumption	m3/h	2
Measurement	Gross weight	kg	5800
	Dimension (L x W x H)	mm	5700x3260x2765

Detailed Information For Spare Parts
Control system:
Italian ESA CNC control system with touch screen for computer setting and controlling easily and visiable. Make your complicated work easily and high effficience. No need to switch from PC to machine frequently.
Digital Servomotor:
Italian digital servomotor. Using a kind of permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with ESA CNC control system, creates a reliable controlling power for X, Y, Z, A and C axes.
Sole Engraving Module (Optional)
* Type: electric spindle * Rotating speed: 0-24000 rpm
* Power: 5.5 kw
Comparing with machnical spindle, the rotating speed of this electric spindle is super higher. It makes engraving fine and faster,
or make curve cutting, corner cutting by milling much faster too.
Electro-spindle
High quality Electro-spindle controlled by an inverter allowing the adjustment of revolutions from 0 to 6000 rpm, so granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Linear Guide
Hiwin linear guide used on crossbeam and carling for high precision of cutting and long lifespan.

Slab Image Capture (Optional):
The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to be machined; it is also possible to qualify the slab edge geometrically.
Software - Pegasus CAD/CAM
Brand: Pegasus
Original: Italy
* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings.
Slab Thickness Detector (optional)
Origin: China:
System to automatically detect the thickness of the slab.

Blade Presetting Unit (optional):
Automatically measuring blade diameter and diamond tool

Application:
* 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades
Customer Spot
