Product Details
Product Description
Product Description
Parameter:
Brand:TopTiTech
Origin:Baoji, China
Color: Black and Light grey
Material: Gr1,Gr2 titanium
Mesh Count: 2-400
Weave: Plain/twill/dutch weave
Hole Shape: square, rectangular
Shape: In roll,pc or sheet
Roll Width: 0.914m,1.0m,1.22m or customized
Roll Length: 10m,20m,30m or customized
Samples: Available
Chemical Composition
C: 0.10%.
Fe: 0.30%.
H: 0.015%.
N: 0.05%.
O: 0.35%.
Ti: Rem.
Other each: 0.1; Total 0.04 max.

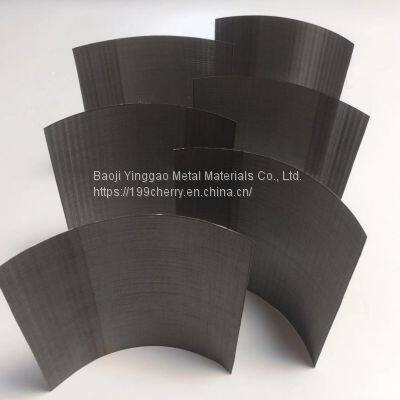

Titanium wire mesh is woven from pure titanium wire or titanium alloy. Also called titanium mesh,titanium filter mesh,titanium electrode mesh and titanium current collecting mesh according to the applications.
Titanium wire mesh is valued for its high strength,light weight and corrosion-resistant properties.It can be divided into black and bright according to the surface of the raw material.
Black titanium mesh is made of pure titanium wire with graphite coating on the surface.Moreover,it is suitable for ship filtration and seawater filtration. For the bring titanium wire mesh,the raw material is graphite emulsion coating removed. It can be used as electrode mesh, titanium battery collecting mesh and fine chemical liquid filtering titanium mesh.
Properties of Titanium Wire Mesh
1. Small density as well as high tensile strength
2. Superb corrosion resistance
3. Elevated temperature resistance
4. High thermal properties
5. High temperature resistance
6. Resistance to acids and alkalis
7. Non-toxic
Application of Titanium Wire Mesh
The titanium woven wire mesh can be used in various field in the below
1. Shipbuilding Military industry Satellite and aeropress
2. Chemical industry Environment industry Mechanical industry
3. Electroplating industry Petroleum Battery industry
4. Pharmaceutics Surgery Medicine
Technique
Woven, expanded, perforated.
Packing: Inside with paper tube,outside with waterproof paper and plastic film, then loaded in wooden pallet or wooden box. Customized packing is also available.
>>
