Digital Desktop Micro Vickers Hardness Tester Microvicky Vh1010A

Product Description

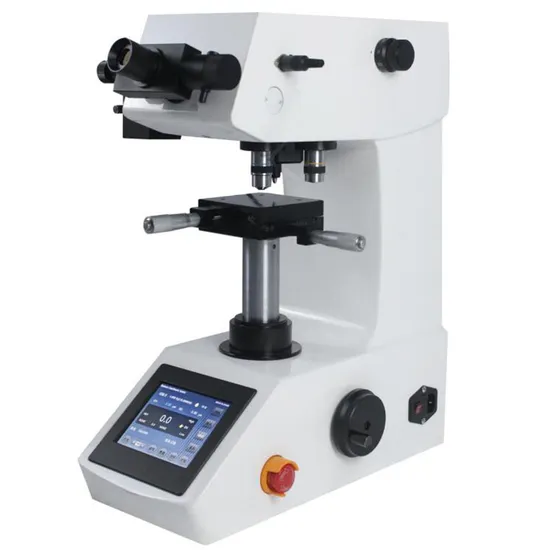

Digital Micro Vickers Hardness Tester MicroVicky VH1010A
Application: Carburized layer, ceramics, steel, non-ferrous metals, thin plates, metal flakes, electroplated layers, small specimens. Gradient measurement of nitride layer, forest carbon layer and quench hardened layer.
Characteristics: Color touch screen. Auto hardness conversion to other scales. Gradient test can be performed, and the depth of hardened layer can be automatically calculated. With data viewing functions, data can be printed via Bluetooth. Automatic loading, dwelling, and unloading during the testing process, simple operation, no human operating error. Upgraded manual lifting system on the side of the worm gear, and the screw has no gap. Upgraded optical system with clear image of indentation, and improve the accuracy of the measurement.
Specification:

Product Name		Digital Micro Vickers Hardness Tester
Model		MicroVicky VH1010A
Code#		823-162A
Numerical input method		Auto
Lens and Indenter Switch		Auto Turret
Loading Force	N	0.098,0.246,0.49,0.98,1.96,2.94,4.90,9.80
	gf	10,25,50,100,200,300,500,1000
Dwell Time		1~60 adjustable
Loading Control		Automatic
Magnification		100x/40x(500x customizable)
Minimum measurement unit		0.025 μm
Analogue X-Y Anvil		Size:100x100mm; Travel:25mmx25mm
Max. Height of Specimen		90mm
Instrument Throat		120mm
Dimension(LxWxH)		425x245x530mm
Packing Dimension		500x490x720mm
Net weight		55Kg
Gross Weight		61Kg
Power Supply		AC220V,50/60HZ
Execution Standard		ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2

Standard Delivery:

Product Name	Code#	Product Name	Code#	Product Name	Code#
Vickers Indenter	823-401	10x Eyepiece	823-301	Anti-dust Cover	823-911
Vickers Hardness Block (700~800)HV1	823-611	Objectives 10x	823-311	Accessories Box	823-901
Vickers Hardness Block (400~500)HV0.2	823-621	Objectives 40x	823-341	Power Cable	823-801
Flat Clamp	823-711	X-Y Anvil	823-701	Filament Clamp	823-761
Adjusting screw	------	Screwer Driver	823-951	Thin-piece Clamp	823-751
Small Spirit Level	823-931	Warranty card/certificate	------	Instrument Manual/Packing List	------

Optional Accessories:

Product Name	Code#	Product Name	Code#	Product Name	Code#
Video Measuring Eyepice	821-811	Irregular clamping table	823-741	Vickers Measuring Software	iVicky 2.0
Digital Micrometer Head	823-719	LCD Monitor	823-821	USB CMOS Camera	823-471
Vickers Measuring Pad	VicPad	Tablet adapter	------	Camera adapter	823-361

Vickers Measurement Software iVicky V2.0 (Optional)
Introduction:
New generation vickers/knoop measurement software with friendly operation interface, apply USB camera to fast capture video and images, supports case depth inspection by analyzing the indentation image.
In traditional way, operators judge the size of the indentation through the microscopes, due to vision errors, different operators obtain different measurement results for same indentation, while by software, then indentation is enlarged through high resolution lens, and the size of indentation can be automatically obtained by image processing algorithm, largely improve the accuracy and efficiency.
Features: One-Key operation, easy and fast. Automatic image process technology, high accuracy and stable result. curve chart to display hardness results. Support English, Russian and Chinese operation language. Standard measurement parameters and user-defined parameter for selection. Supports hardness conversion. Support report generation by Word/Excel. Interface of Software:
Packing information:
Packing size of wooden case :69*39*79 CM ,
Gross weight:61KG
Delivery Time:
About 20 days after order confirmed.

---
