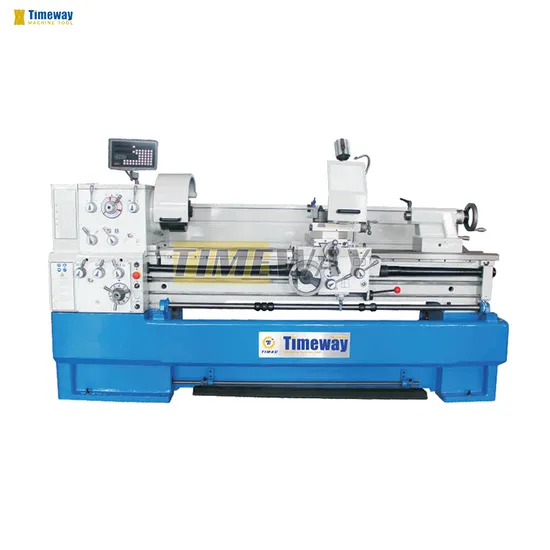

High Precision Gap Bed Lathe Turning Machine

US$9,310.00

1-2 Pieces

US$8,985.00

3+ Pieces

Basic Info.

Model NO.

CL-410; CL-460

Type

Horizontal Lathe

Guide Rail

Horizontal Guide Rail

Power Source

Manual

Controlling Mode

Artificial

Automatic Grade

Manual

Setting Mode

Floor-type

Precision

High Precision

Certification

ISO 9001

Condition

New

Machine Type

Gap Bed Lathe

Swing Over Bed

410mm;460mm

Gap Length

165mm

Control Type

Manual

Spindle Bore

58mm

Transport Package

Wooden Case

Specification

2200x1080x1340

Trademark

TIMEWAY

Origin

China

Production Capacity

200 Sets/Year

Product Description

Technical Parameters

Specification	Unit	CL-410	CL-460
Max. swing over bed	mm	410	460
Max. swing over cross slide	mm	220	270
Max. swing over gap	mm	640	690
Gap length	mm	165	165
Distance between centers	mm	1000/1500/2000	1000/1500/2000
Max. turning length	mm	950/1450/1950	950/1450/1950
Spindle nose	-	D1-6	D1-6
Spindle bore	mm	58	58
Spindle taper	-	MT6	MT6
Spindle speed range(steps)	rpm	25-2000 (12)	25-2000 (12)
Tailstock quill diameter	mm	60	60
Tailstock quill travel	mm	130	130
Tailstock quill taper	-	MT4	MT4
Main motor power	kw	5.5	5.5
Coolant pump power	kw	0.1	0.1
Packing size	mm	2250/2800/3300x1120x1620	2250/2800/3300x1120x1620
Machine weight	kg	1580/1745/1900	1640/1810/1965

Standard:
· 3-jaw chuck
· 4-jaw chuck
· Face plate
· Thread chasing dial
· Splash guard
· Oil gun
· Steady rest
· Follow rest
· Dead center
· Cooling system
· Work lamp
· Change gears
· Reducing sleeve
· Foot brake
· Tools & tool-box
· Leveling wedge and bolts
· Operation manual (English)

Optional:
· 2 or 3-axis DRO
· Chuck guard · Quick change tool post
· Living center
· Taper turning attachment
· Leadscrew guard
· Tool post guard
