Combo Food Metal Detector with Check Weigher Bag Bottle Cookies

Product Description

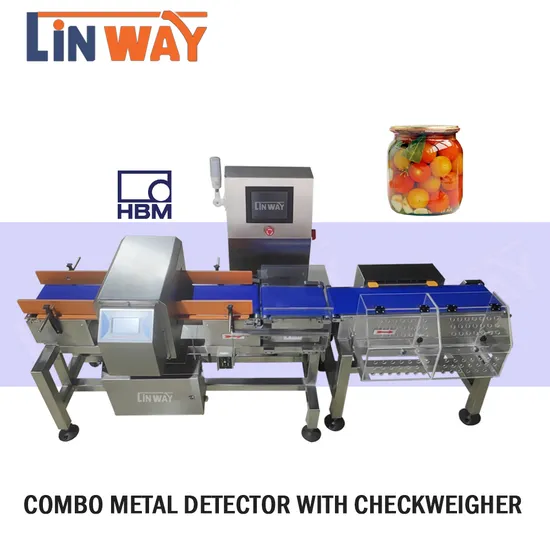

Combo Metal Detector With Check Weigher For Bag Bottle Box
OVERVIEW
LW-IMC metal detector combined with check weigher series are with DSP technology for detecting all metal contaminants detection and weight control in packaged or non-packaged food, including FE, Non-Fe(Copper, Aluminum, etc) and stainless steel. It's popular in various industries like, aquatic seafood products, meat or poultry, salted products, pastry, nuts, fresh vegetables and fruits, chemical raw material, pharmacy, cosmetics and toys, etc.
MAIN STRUCTURE
Detailed Photos
LEADING FEATURES
1. HMI make various kinds of materials weight checking and metal detecting available;2. Smart main board and 7" Color touch screen control for easy quick operation;3. High detecting sensitivity metal detector tunnel.4. The inverter brushless motor ensure different speed available.5. High sensitivity and high accuracy HBM load cell.6. Automatic Zero-track function can be set on the screen 7. Heavy duty frame ensure reliable performance
8. Window shield protection cover on Weighing belt
9. Air blastiing rejecting device with collecting bins OPTIONS AVAILABLE
400mm width belt with different tunnel height
Different rejector system
DIMENSION
Product Parameters

Model No.		LW-IMC2020
Effective Belt Width		200mm
Effective Tunnel Height		200mm
Weight Range		5g to 2000g
Accuracy		±0.1g
Belt Speed		15-35m/min
Max. Product Size	Width	180mm
	Length	250mm
Weighing Belt Size	Width	200mm
	Length	300mm
Sensitivity	Non-Fe	≥ Dia. 1.0mm
	Fe	≥Dia.1.5mm,
	SUS	≥Dia.2.5mm
Pressure Requirement		0.4~0.8Mpa
Mode		Light with alarm, or air rejection as option One collecting bin is for metal detector contamination One rejector bin is for checkweigher non-qualification
Body Material		Stainless Steel 304
Waterproof Level		IP54
Power Supply		AC220V
Working Height		750±50mm

Company Profile
Found in 2006, LINWAY has been concentrated in food inspecting detecting machines, including high speed & precision dynamic online checkweigher, food metal detector, food x ray machine, automatic weight annular or straight sorting or grading, also we're supplying high quality other related feeding weighing packaging line, etc and other related customized packaging machines. Qualified packaging solution is from our years of devition and understanding of the packaging industry. LINWAY always strives for perfectionin the pursuit of quality, while considering easy to operate, easy to disassemble, easy to clean small investment, stable performance, so that the packaging carry, deliver and create value.
Q: What's Linway fist products?
A: Quality inspecting machine, Checkweigher, metal detector, color sorting, vision counting and related machines.
Q: Why do we need quality inspecting machines?
A: Automatic inspecting is more efficient, reject NG goods, reduce client's complaints, maxinum protect your brand.
Q: How to choose a good check weigher?
A: Confirm weight, package size, exptected accuracy and speed, running direction, rejecting device, etc.
Q: How to use your metal detector?
A: Pluge to run easy operation with our auto product learning function
Q: OEM or Customization is available?
A: Yes, both are possible.
Q: How many model of combo metal detector with check weigher?
A: 1608, 2018, 4015

---
