Big capacity drum type wood chipper

Product Description

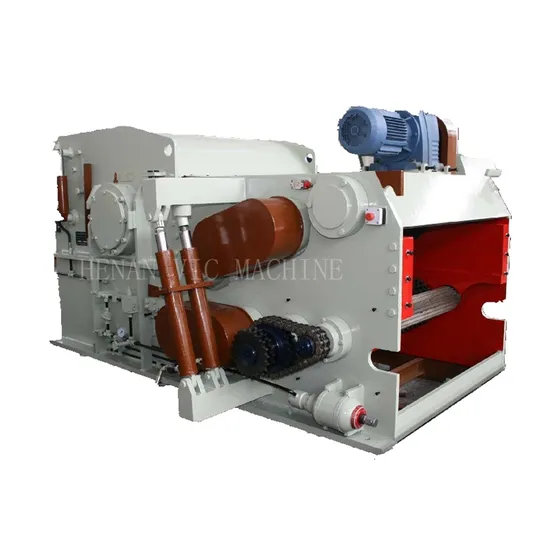

Woodog drum wood chipper Product Description Instruction
This drum chipper is composed by machine body, cutting knife, feeding material rollers, conveyor, hydraulic pressure system and so on. It has advanced structure, high quality cutting blades, wide operating range, easy maintenance.
Cutting material is mainly small size timber, timber-cut, residues of wood working(such as branches, tree, slab, log and so on), also can be straws(such as cane, reed, bamboo and so on)
Main date

Model	BX2113	BX218	BX216	BX215
Knife roller diameter(mm)	1300×780	800	650	500
Knife number(huddle)	3	2	2	2
Feed-in material door size(mm)	400×700	310×680	240×540	460×200
The diameter of raw material(mm)	300	240	200	160
Final product's length(mm)	25-35	15-35	35	25-35
Feeding speed(m/min)	32	40	35	43
Knife roller rotate speed(r/m)	420	650	590	592
Capacity(t/h)	20-28	10-15	6-8	4-5
Weight(ton)	11.8	7	4	2.9
Power of main motor(kw)	220	110	55	45
Feeding-in material roller motor power(kw)	7.5X2	4x2	3X1	2.2X2
Outside diameter(mm)	3670×2517×2050	2670×2150×1500	1980×1950×1250	1540×1240×1020

More photos
Control box
Double tooth roller
Package and shipping
Our factory:
Service process:
Customers buy the products sold by our company, is only the beginning of the relationship with our company, but also the beginning of the work of the after-sales service department, in the whole stage of customer use of the machine, all our after-sales service personnel with thoughtful, meticulous, enthusiastic and timely service, so that customers can easily use the equipment without worries. We can truly experience the convenience and value created by our products for customers.

---
