China High Quality Double Station 15L Plastic Bottle Making Machine

Product Description

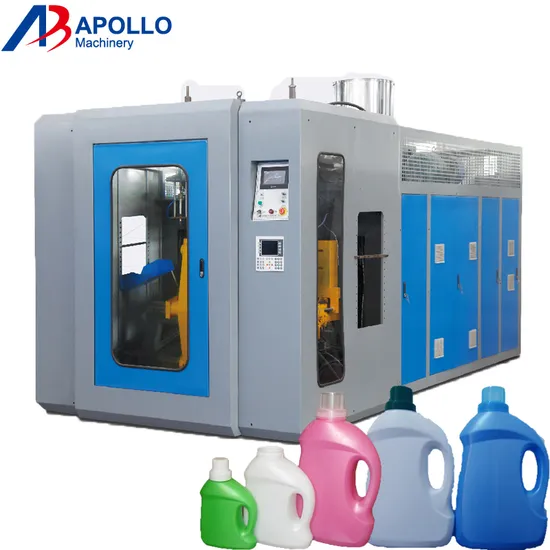

Plastic Bottle Blow Moulding Machine (15~20L) (ABLB90II)
ABLB90II
4 gallon bottle blow molding machine was specially designed for making plastic water gallons, lubricant oil bottles, tool boxes, plastic drums, and other plastic containers not over 20L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 20L.
(2)Double station single die head design, Stable and efficient.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Full automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
(8)Special screw cut device available

Max. Product volume	20 liters
Out put capacity	2160~2400pc/day
Screw diameter	90mm
Screw L/D ratio	24 L/D
Screw drive power	45KW
Screw heating capacity	8 KW
No.of heating zone	4 zones
Output of HDPE	128KG/H
Oil pump drive power	11 KW
Clamping force	108KN
Max.size of mold	240-660mm
Mold stroke	530 X 550mm
Max.die diameter	180mm
Blowing pressure	0.6 mpa
Air Volume	0.9 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	90 L/MIN
Size of Machine	4.2x3x3.1m
Weight of machine	11ton

---
