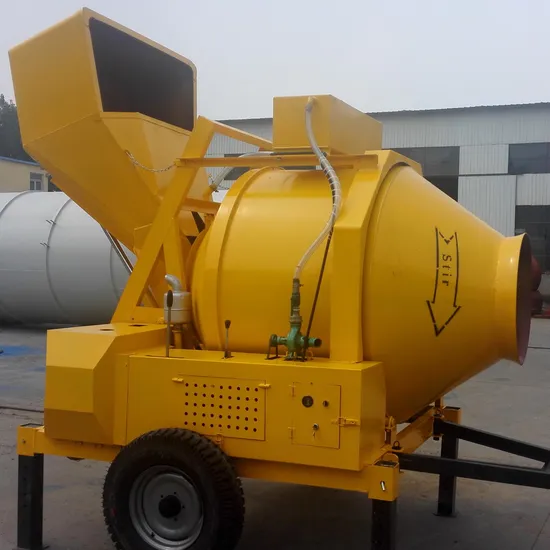

Factory Direct Sale Reversing Drum Diesel Type Hydraulic Tipping Hopper Concrete Mixer for Sale

Product Description

Overview Quick Details
Condition: New Place of Origin: Shandong, China
Brand Name: Haiqin Charging Capacity: 800L
Reclaiming capacity: 500L Speed of Mixing Drum: 13rpm
Discharge Way: Hydraulic Outline Dimension: 3500*2200*2550mm
After-sales Service Provided: Video technical support, Free spare parts
Warranty: 1 Year Power type: Diesel
Weight: 2400 Discharging capacity: 350L Supply Ability
Supply Ability: 200 Set/Sets per Month Packaging & Delivery
Packaging Details: Nude Packing
Port: Qingdao
Lead Time:

Quantity(Sets)	1 - 5	>5
Est. Time(days)	15	To be negotiated

1. Introduction of product
The concrete mixer ranges from the large-duty mixing truck to the mini mixer. It is a useful tool for either homeowners who attempt small concrete projects or contractors who should complete large-scale projects where large batches of concrete and mortar need to be mixed. The machine is designed for safe, reliable functioning as well as large capacity.
2. Features:
1. Rugged mixing drum comes with reinforced rim and highly efficient paddles.
2. Outstanding mixing performance
3. Long-lasting
4. Limited maintenance
5. An extra handle is mounted onto the rear end of the compact vehicle
6. Lockable engine compartment
7. Ergonomically designed concrete mixer is supplied with anti-tip system.
8. Locking system for large handle wheel and foot pedal.
9. Rugged, dependable chassis is also easy to clean.
10. The machine can be supplied with either two wheels or four wheels.
3. Specification:

Model	HQ-350	HQ-500
Discharging Capacity	350L	500L
Loading Capacity	560L	750L

Engine Type	Changchai Diesel Water Cooled (Electric Start)
Hoisting Model	Hydraulic pump

Theoretic Productivity	14 m³/h	25m³/h
Speed of Mixing Drum	14.5r/min	14 r/min
Max Size of Aggregate	Ø60mm	Ø60mm
Mixing Time	45-65s	50-70s
Drum Thickness	8mm	8mm
Size	2800*2200*2500mm	3500*2200*2550
Weight	1950	2400

4. Working Case in the foreign countries of Haiqin Machinery
5. Certificate of Haiqin Machinery
6. More product categories of HaiQin Machinery
7,Warranty and Service.
HAIQIN machine has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.
Choose HAIQIN, and then better after-service will be guaranteed.
Contact us right now for more information! Online 24 hours a day!
