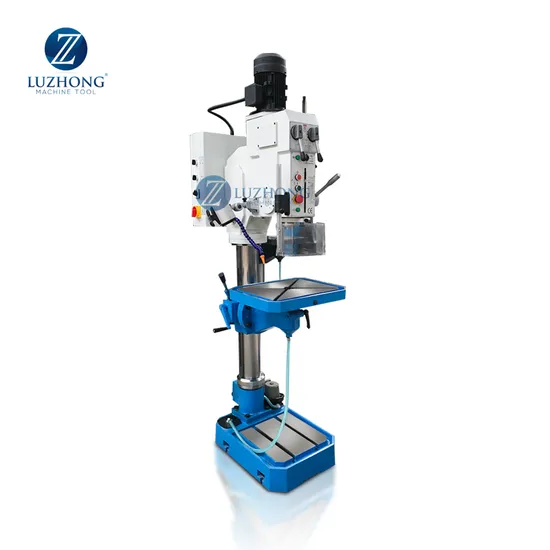

Z5040A Industrial Heavy Duty Square Column Vertical Drilling Machine

Product Description

Z5040A Industrial Heavy Duty Square Column Vertical Drilling Machine Product Description

Product Parameters
Product main technical specifications:

Model	unit	Z5035A	Z5040A
Max. drilling capacity	Mm	35	40
Max. tapping capacity	Mm	M22	M22
Distance spindle axis to column surface	Mm	590	590
Max. distance spindle nose to base	Mm	1150	1175
Max. spindle travel	Mm	155	200
Spindle table		MT4	MT4
Number of speed step of the spindle	Step	12	12
Spindle speed range	r/mm	125-3030	52-1400
Feed steps of the spindle	degree	3	4
Feed range of the spindle	Mm/r	0.1,0.2,0.3	0.1,0.2,0.3,0.4
Max. stroke of the worktable and its bracket	Mm	530	530(410)
Rotation degree of worktable and its bracket in cross direction	Degree	±45°	±45°
Working area of the worktable	Mm	500*420	580*460
Dia. of colun	mm	120	160
Main motor power	KW	1.0/1.2	2.2
Max. external dimension	Mm	875*510*2140	940*680*2405
N.W	Kg	430	650

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
