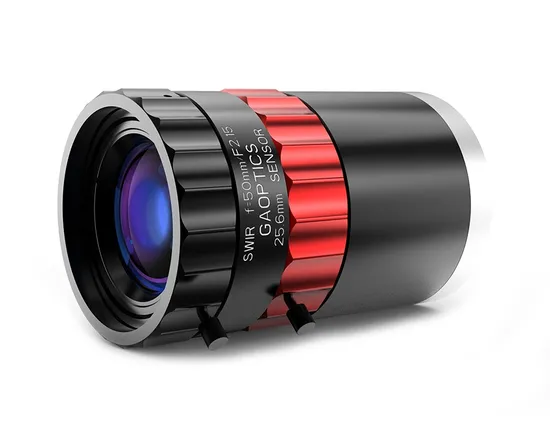

F2.1~F22 C-Mount 100mm 800~1800nm Swir Lens System

Product Description

Product Description The optical lens covers visible light, short wave, medium wave, and long wave, with specifications such as single FOV, multi FOV, and continuous zoom. It has a series of shelf products including 8mm, 15mm, 25mm, 50mm, 100mm, 150mm, 10/32mm, 30-150mm, 60-400mm, 60-600mm, 20-1050mm, 40-1200mm, etc., and accepts customized design.
Product Feature Optical lenses have the characteristics of high transmittance, high resolution, high sealing (IP67), wide operating temperature range, high reliability, and good versatility. For dual field, multi field, and zoom lenses, high optical axis consistency can be ensured; Using optical non thermal technology, the lens remains in focus over a wide temperature range. Each optical lens can be adapted to various specifications of detectors and applied to various optoelectronic devices and systems. The interface can be customized.
Product Parameters

EO Camera
Focal Length	F No.		Spectral Range		FOV(H×V)		Detector		Zoom Type
32/126mm	2.36/3.0		0.4-0.9μm		12.83°×7.24*/3.27×1.84		1920*1080, 3.75μm		Digital Zoom
32/70mm	3		0.4-0.9μm		12.83°×7.24/5.89°×3.31		1920*1080, 3.75μm		Digital Zoom
6.5-52mm Continuous Zoom	4.5		0.4-0.9μm		54°×32° -7.29°x4.1		1920*1080, 3.45μm		Digital Zoom
10-150mm Continuous Zoom	3.3-5.6		0.4~0.9um		36.7°×21.1° -2.6×1.4		1920*1080, 3.45μm		Digital Zoom
15-300mm Continuous Zoom	3.5-6		0.4-0.9um		24.9°×14.2° ~1.3°×0.7		1920*1080, 3.45μm		Digital Zoom
15-600mm Continuous Zoom	4-6		0.4-0.9μm		27×15.38 -0.69*x0.39		1920*1080, 3.75μm		Digital Zoom
Continuous Zoom	4.8-6.8		0.4-0.95um		5.15°×2.9° -0.97°×0.54		1920*1080, 3.75μm		Digital Zoom
SWIR Lens
Focal Length		F No.		Spectral Range		FOV(H×V)		Detector	Zoom Type
25mm		1.4		0.9-1.7μm		21.7×17.4		640*512,15um	Manual/Auto
50mm		1.2		0.9-1.7μm		10.97×8.78		640*512,15um	Manual/Auto
60/150mm Dual FOV		2		0.9-1.7μm		9.15°×7.32°/3.67°×2.93		640*512,15um	Manual/Auto
25-300mm Continuous Zoom		2.8-3.2		09-1.7μm		21.74°×17.47°-1.83°×1.47		640*512,15μm	digital zoom

About us Xi'an Zhongke Lead IR-Tech Co., Ltd established in 2015, is a Research type enteprise based on intelligent electro-optical equipment and infrared thermal imaging technology, incubated by Xi'an Institute of Optics and Precision Mechanics of China Academy of Sciences.
Lead IR-Tech has three core centers: Photoelectric equipment integration, precision optical processing, and specialized lens calibration. They are equipped with over 400 advanced devices, including CNC polishing machines, photoelectric, coordinate measuring machines, interferometers, and photoelectric system testing systems. This enables LEAD IR-TECH to achieve the full process of design, processing, integration, and testing of photoelectric products.
