Factory Price High Quality 50, 000liters LPG Plant Tanker 25mt 50cbm LPG Storage Tank on Sale

US$10,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CLW5086CGG
Material
Carbon Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Tank Purpose
Storing Liquid Propane/Ammonia/Butane Gas for Gas
Tanker Material
Q345r, 16mndr, Q370r, SA516gr70, SA517, etc.
Overall Size (Length X Width X Height)
9182*2728*3318 (mm)
Tank Diameter
DN2700mm, etc.
Tank Thickness
Shell 14mm, Head 16mm.
Tank Volume Options
5-200cbm; Usually 50m3 60m3 80m3 100m3 120m3
Tank Capacity Options
2ton-100ton; Usually 20ton, 30ton, 40ton, 50ton
Design Pressure
1.71MPa/17.1bar, 1.77MPa/17.7bar, 1.61MPa/16.1bar
Design Temperature
-20degree~50degree
Corrosion Allowance
1 mm
Color
as Per Customer′s Request
Life Time
20 Years
Transport Package
Naked with Wax
Specification
50m3, 50cbm, 50000liters, 50000L
Trademark
CLW
Origin
Suizhou, China
HS Code
8705909090
Production Capacity
500 Unit/Month

Product Description

Factory Price High Quality 50,000Liters lpg Plant Tanker 25MT 50CBM LPG Storage Tank on Sale
Product Description
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc.
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

Product Specification
Parameter of 50000liters lpg gas station tank
ITEM PARAMETER ITEM PARAMETER
Volume 50cbm Thickness of Shell 14mm
Tank Material Q345R Thickness of End plate 16mm
Overall Size 9182*2728*3318mm Tank Net Weight 10640kg
Tank Diameter 2700mm Loading Capacity 19950kg
Design Pressure 1.77Mpa Gas Density 420kg/M3
Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm
Design Temperature -20ºC~60ºC Heat Treatment Bulk
Vapor Outlet DN50 Gas Outlet DN50
Life time 15 years
Accessories
Model Item Qty Junction surface
J41N-2.5-50 Stop Valve DN50 6 RF
J41N-2.5-25 Stop Valve DN25 2 RF
J41N-2.5-80 Stop Valve DN80 1 RF
J24W-320-DN6 J24W Needle Valve M20*1.5 1
HG21584-95 Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 1 RF
A42F-25-80 Safety Valve DN80 1 RF
Y-100T Pressure Gauge M20*1.5 1.5degree 0~4Mpa 1
WTQ-280 Thermometer M33*2 2.5 degree 1 -40ºC~60ºC

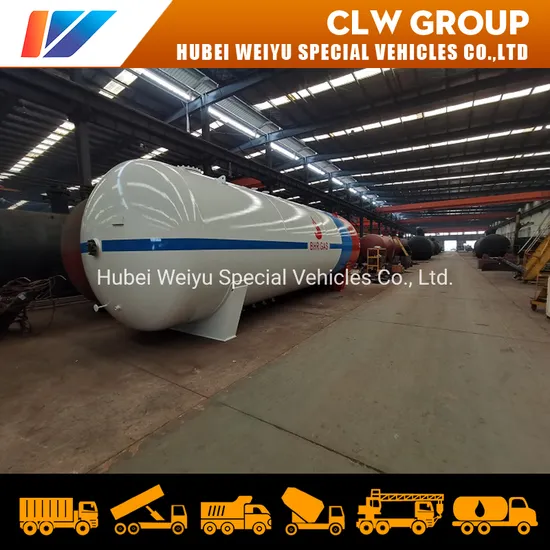

Product Show
We supply customized drawing for every storage tank
Nozzle data
Characters Size Pressure(MPa) Connect Junction surface Purpose
a DN50 25 HG20592-WN RF Drain outlet
b DN50 25 HG20592-WN RF Liquid phase outlet
c1-2 DN50 25 HG20592-WN RF Gaseous phase balanced outlet
d DN50 25 HG20592-WN RF Liquid inlet
e M33*2 Screw-thread Thermometer connection
f1-2 DN25 25 HG20592-WN RF Lever gauge connection
g M20*1.5 Screw-thread Pressure Gage
h DN100 25 HG20592-WN RF Safety valve connection
i DN50 25 HG20592-WN RF Emptying mouth
j DN450 25 HG20592-WN FM Manhole

Main Structure Diagram
Production Process of LPG Gas Station Tank
We supply package solution for lpg station building as follows
