Hydraulic Leather Belt Embossing Machine (Hg-E120t/a)

US$10,000.00-14,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HG-E120T/A
Structure
Flat-Bed Cylinder Press
Color & Page
Single-Colour Printing Press
Species
Intermittent
Printing Speed
0-999s Adjustable
Produce Name
Leather Belt Embossing Machine
Feeding
Manual
Warranty
1 Years
Heating Molds
by Heater to Emboss.
Heater
0-150t
Stroke
0-100mm or Costomize
Embossing Length
1350mm or 1600mm or Customize
Suitable Material
Leather Belt,Steering Wheel Cover Embossing.
Need Mould/ Plate
Yes
Heating Time
0-999s Adjustable
Transport Package
Plastic Film or Packed in Wooden Cases
Specification
ce
Trademark
honggang
Origin
Guangdong of China
Production Capacity
3000sets/Years

Product Description

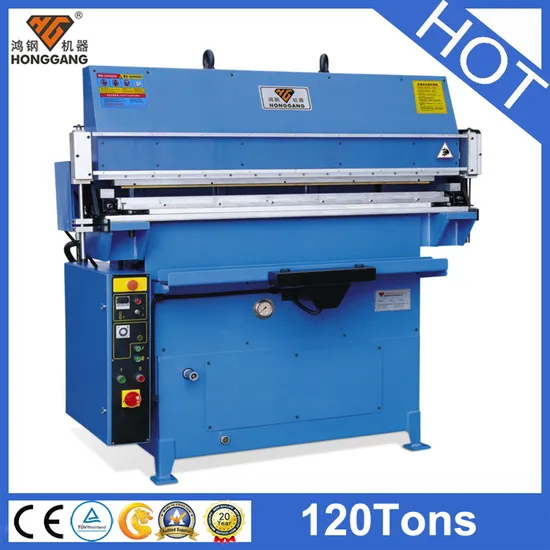

HG-E120T/A 120Tons Hydraulic Leather Belt Embossing Machine
Special for leather belt,steering wheel cover embossing and so on. 1.Features and Advantages 1.processing the leather materials surface by heating plates and hydraulic pressure. 2.both manual and automatic feeding available. 3.heating time,heating temperature,pressure force,feeding rate canbe adjusted. 4.easy to set and unload plates,simple to operate. 2.Product Specification
Model Pressure Dimension/(mm) Length Width Moter Heater Net Weight
HG-E120T/A 120 Tons 1650*1150*1700 1350mm 40mm 4kw 2.4kw 1610kg
HG-E120T/B 120 Tons 1900*1150*1700 1600mm 40mm 4kw 2.4kw 1810kg
3. The Embossing Machine Working Show 4. Sample and mould:The leather belt embossing machine Suitable for leather belt,steering wheel cover embossing etc.
5. FQA: 1)What's warranty of leather belt embossing machine?
12 months Warranty Life-long maintenance service for machine
2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.

3)Can we test the our material by your machine free?
Yes, please contact us to send your matrial.

4)How to confirm how much ton pressure is fine?
Always 1m knife line need about 5 ton pressure.
please send your drawing or product photo, we can help you confirm.

5)Can you make dies & PP boards?
Yes, just send your drawing or material.
PP board will come with machine to you.

6)Are you a factory or trading company?
We are a factory and manufacturer

Don't know how many ton you need?
Please contact us!

If you are not sure if your material can be cut by this cutting machine,we want to know the product information:
Material:
Max. material width:
Max. material thickness:
Max.cutting length:
Send your Inquiry Details in the Below, Click "Send" !
we will reply within 24h!
