| US$80.00-99.00 | 4 Pieces (MOQ) |

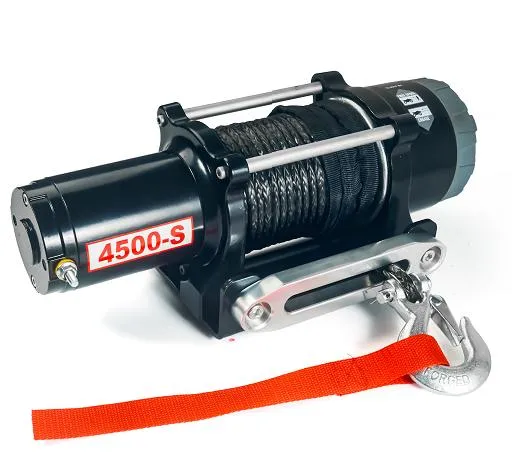

| Rated line pull: | 4500 lbs. (2041 kgs.) Single Line |
| Motor: | Permanent magnet motor(Input Power):1.61 hp / 1.2kW (DC 12V) |
| Gear reduction ratio: | 166:1 |
| Geartrain: | 3-Stage Planetary |
| Free Spooling Clutch: | Turn |
| Fairlead: | Aluminium Hawse |
| Braking action: | Automatic in the drum |
| Overall dimensions: | 14.80" x 4.61" x 4.84" (376 mm X 117.2 mm X123 mm) |
| Drum size: | Ø 2.24" x 4.72"(Ø 57 mm x 120 mm) |
| Rope: | Ø 7/32"(D) x60'(L) Ø 5.6mm (D) x 15.3 m (L) |
| Mounting bolt pattern : | 6.57" x 2.99"(167mm x 76 mm) |
| Line pull | Line speed | Motor | Pull by layer |
| lbs. (kg) | ft/min (m/min) | Current | Layer/Lbs. (kg) |
| 0 | 19.4 (5.9) | 20 amps | 1/4500 (2041) |
| 500 (227) | 16.7 (5.1) | 45 amps | 2/3817 (1731) |
| 1000 (454) | 15.1 (4.6) | 70 amps | 3/3314 (1503) |
| 1500 (680) | 14.4 (4.4) | 100 amps | 4/2928 (1328) |
| 2000 (907) | 13.5 (4.1) | 120 amps | |
| 2500 (1134) | 11.8 (3.6) | 145 amps | |
| 3000 (1361) | 10.8 (3.3) | 165 amps | |
| 3500 (1588) | 9.8 (3.0) | 180 amps | |
| 4000 (1814) | 9.2 (2.8) | 200 amps | |
| 4500 (2041) | 8.2 (2.5) | 220 amps |
