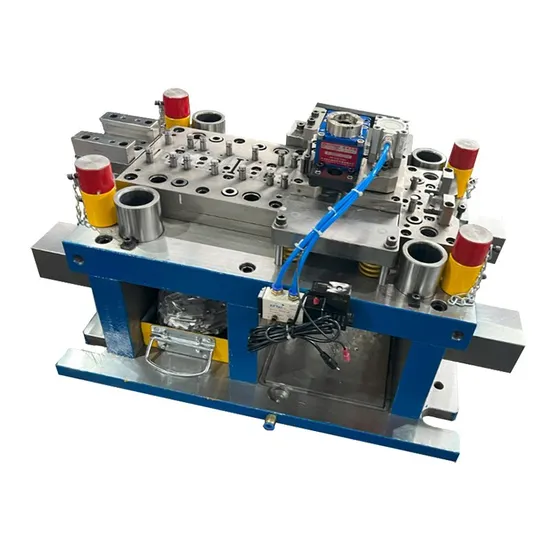

China Customize Sheet Metal Stamping Molds in Die Tapping Progressive Stamping Moulds

Product Description

Located in Qingdao, Hiparter has more than 20 years experience in designing and manufacturing progressive stamping die,and we have a variety of die manufacturing process capabilities. Qingdao is China's home appliance base, with Haier, Hisense, Aucma and other world-famous local home appliance brands. With this advantage, we have produced almost all stamping dies for all home appliances. At the same time, we are also proficient in the development and manufacturing of injection molds for home appliances, even casting mold. Here you can experience a one-station mold service to meet your various needs.
Product Description
Features of Our Progressive Press Die
1.High machining accuracy, the flatness within 0.1mm.
2.High strength and not easy to deform, has good electrical and thermal conductivity.
3.High finish appearance.
4.The machining precision is high and the assembly structure is seamless.
5.No granules, no spots and no painting peel off in appearance.
Product Parameters

Mold Name:	Sheet Metal mould in die tapping
Mould core material:	S45C, S136, S136H, S50C, P20, 718H, 738H, NAK80
Shaping Mode:	Punching Mold
Product Material:	Aluminum, Steel, Stainless steel, SECC, SGCC, Galvanized steel, Brass, Copper, Bronze, etc.
Model Number:	Customized
Template flatness:	+/-0.01mm
Molding process:	Punching, blanking, piercing, bending, drawing, curling etc.
Milling Speed	High Speed
Spare Part	Punch, Die, Spring, Gas Spring, Guide Pin, Guide Sleeve, etc.
Surface Treatment	TD/PVD/Hot Treatment
Processing	Laser cutting, stamping,welding, bending, deburring, grinding, assembly and CNC machinng
Design Software	AutoCAD, Solid works, PRO/E, UG
Mould base:	Standard mould base, LKM, HASCO, DME,etc......
Fast mold design:	We can be within 1-3 working days after getting customer's drawings.
Minimum order:	Small orders can be accepted.
Mold making service	OEM/ODM service is available.
Mold packing	In strong wooden pallets to avoid any damages during long transportation.
Specification	Depends on clients' requirements
Mold lead time	About 45 days after getting the mold design confirmation.
Application	Car, Household Appliances, Commodity, Electronic, Home Use, Hardware, Industrial
Color	Customised

Processing equipment

Stamping Molds Machining Equipments
No.	Process	Name	Qty.
1	Preparation	Grinding machine	2
		Milling Machine	2
		Drilling Machine	2
		Grinding machine	2
2	NC	Three-axis Vertical Milling Center	6
		Machining Center	2
		CNC drilling and milling center	1
3	EW	Wire-Cut	11

NO	Machine Type	Model	Table Size(mm)	Feeder	Manufacturer(Brand)	QTY
1	Mechanical Press	JF36-800T	4000×2000	Yes	RCDY,China	1
2	Mechanical Press	DTH-400T	2700*1200	Yes	DIGOR, China	2
3	Mechanical Press	SN2-250T	3000*920	Yes	SEYI ,China	1
4	Mechanical Press	DTI-250T	2700*900	Yes	DIGOR, China	1
5	Mechanical Press	JH21-200T	1400*840	Yes	YADON ,China	2
6	Mechanical Press	DPI-160T	1150*600	/	DIGOR, China	2
7	Mechanical Press	JH21-110T	1100*680	Yes	YADON ,China	1
8	Mechanical Press	DPI-110T	1150*600*110	/	DIGOR, China	6
9	Mechanical Press	JH21-80T		/	YANGLI,China	2
10	Mechanical Press	DP1-45T	850*440*80	/	DIGOR, China	1
Sub-total	Hydraulic Press	/	/	/	/	8
11	Hydraulic Press	YTD27K-630T	4000×1800	/	Tengda,China	1
12	Hydraulic Press	315T		/	Yongli,Nantong,China	4
13	Hydraulic Press	200T		/	Yongli,Nantong,China	1
14	Steel plate shearer	QC12Y-4X2500		/	Tiejun Machinery	1
15	Rotary Cutter	2150*1400*2530		/	Qianglang Machinery	1

Name	Specification ( Stroke,mm)	Brand,Made In	Qty.
Coordinate Measurement Machine	1200*1500*1000	Hexagon,Swiss	1
Alloy Analyzer	/	LANScientific	2
Vision Projector Measurement Machine	300*250*200	China	2
Portable blue ray scanner	/	China	1
Tensile testing machine	/	China	1
Torsion tester	/	China	1
Salt spray tester	/	China	1

Packaging&Shipping

Painting	Convenient to identify your die
Slushing oil	Protect the die surface avoid rust
PE film	Keep the tool surface clean
Related documents	All the details for this die, such as structure drawing, instruction of operation, maintenance manual, inspection report, factory checking list etc.
Outer packaging	Plywooden case, exported standard.
Fastening	More stronger to aviod damage

Export capability
Our dies have been approved and appraised by our customers. We offer prototype making and free image design for customer analyse.We also provide good after-sales service and enjoy a good reputation among customers both at home and abroad, including Haier, Hisense, AUCMA, Midea, SANYO, KIA. GM, etc.The products have been shipped all over the world including destinations in Europe, North America, South America, Japan, Korea, and so on, more than 30 countries.


FAQ
Q1: Are you a trading company or manufacturer ?
A: We are factory and located in Qingdao City, Shandong Provice, China.
Q2: What information is required for a quote?
A. Please provide us with product 2D or 3D drawing. If you don't have drawings on hand, samples are also available for checking cost.
Q3: Can I have my own design?
A: Yes, we are very capable to do customized design and make for you. Please share with your ideas, we will discuss your needs, purpose and objective thoroughly and work together with you for the whole project.
Q4: Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection.
Q5: How long is your delivery time?
A: The lead time of T0 sample depends on the mould structure, and generally it takes 40-50 days from receipt of final drawings, deposit and mold design approval. Mass production delivery time depends on the order quantity.

---
