Single-Jet Dry Type Vane Wheel Water Meter for Smart Meter

Product Description

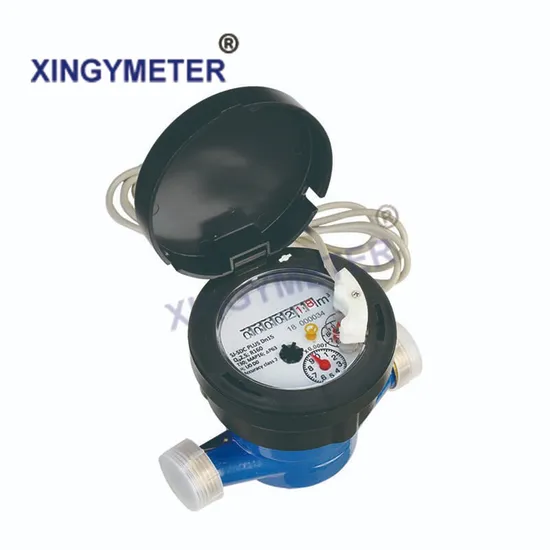

LXSC-D2 Single-jet Dry Type Vane Wheel Water Meter
Product Images
Product Description
INDICATION
Cubic meter(m³) and U.S gallon (USG) for selecting.
WORKING CONDITIONS
WATER TEMPERATURE
≤40ºC for cold water meter
≤90ºC for hot water meter
REED SWITCH OPTION
1 liter 1pulse
10 liters 1pulse
Dimensions and Weights

Nominal diameter	DN	13	20	25	32	40
Body thread	D	G3/4B	G1B	G1¼B	G1½B	G2B
Connector thread	d	R1/2	R3/4	R1	R1¼	R1½
Body length mm	L	80/110	130	160	160	200
Overall length mm	L1	174/204	234	280	284	331
Width mm	W	80	80	80	110	110
Meter height mm	H	82	82	96	123	123
Working height mm	H1	137	137	151	178	178
Weight without connectors Kg		0.5/0.55	0.6	1.05	2.1	2.43
Weight with connectors Kg		0.65/0.70	0.88	1.57	2.89	3.47

"L1"is the total length when coupling gaskets without compression.
