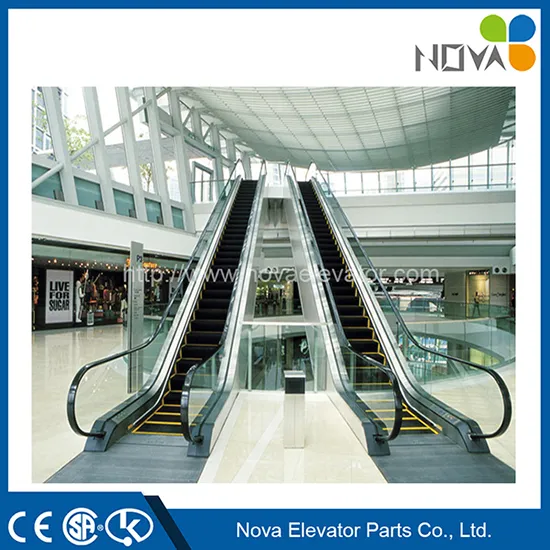

Aluminum Alloy Step Outdoor Escalator Commercial Escalator

Product Description

NOVA escalator to the excellent performance, practical and flexible design to meet different customer needs. Priority use of microcomputer virable frequency(VVVF) and ergonmics research and advanced manufacturing technology. NOVA escalator more perfect, safe, comfortable, energy-saving, easy maintenance.
Its excellent performance design and based on a solid, complete parts, more flexible in line with the needs of the two sides in the commercial and public tranportation.

Escalator standard configuration(Indoor)
Parts name	Specification
Handrails	Syntheric rubber(black)
	Other colors
Handrails bracket	Hairline stainless steel
Balustrade	Tempered safety glass
	Stainless steel
Inner and outer cover plate	Hairline stainless steel
Skirting plate	Hairline stainless steel
	Antifriction coated steel
Step	Stainless steel(black)
	Aluminum alloy(silver gray)
Comb plate	ABS
	Aluminum alloy
Landing plate	Etching stainless steel
	Punched stainless steel
Truss	Profiles
Skirting brush	Nylon wire
Traction machine	3 phase squirrel cage inductor motor and turbine-type gearbox

Standard function:
1. Two direction moving
2. Emergency stop
3. Maintenance stop
4. Luminination for passengers
5. Safety devices

Type	Step wide	Outside cladding	Construction layout opening width	Handrail spacer	Construction layout opening width	Construction layout opening width
	A	B	C	D	E	F
600	600	1200	1260	838	1838	1260
800	800	1400	1460	1038	2038	1460
1000	1000	1600	1660	1238	2238	1660

600
Type	3000	3500	4000	4500	5000	5500	6000
Vertical risw(mm)	57	60	64	68	71	75	79
Net weight(KN)	46	49	52	56	59	62	65
Reactions R1(KN)	41	44	47	50	53	56	59
Reactions R2(KN)	5.5					8
Motor pauer(KW)	2750	2780	2810	2830	2840	2860	2870
Transport dimensions(H)	10900	11890	12889	13870	14860	15860	16850
Transport dimensions(L)	800
Type	3000	3500	4000	4500	5000	5500	6000
Vertical risw(mm)	59	63	67	71	74	82	86
Net weight(KN)	52	56	60	64	64	74	78
Reactions R1(KN)	47	50	54	57	57	66	69
Reactions R2(KN)	5.5		8				11
Motor pauer(KW)	2750	2780	2810	2830	2840	2860	2870
Transport dimensions(H)	10900	11890	12880	13870	14860	15860	16850
Transport dimensions(L)	1000
Type	3000	3500	4000	4500	5000	5500	6000
Vertical risw(mm)	63	67	71	75	83	87	92
Net weight(KN)	59	64	68	73	79	84	88
Reactions R1(KN)	53	57	61	65	71	75	79
Reactions R2(KN)	5.5	8			11
Motor pauer(KW	2750	2780	2810	2830	2840	2860	2870
Transport dimensions(H)	10900	11890	12880	13870	14860	15860	16850

Standard Features
1.Manual oiling
2.Built-in chain roller step
3.Inclined handrail
4.Demarcation lamp
5.Handrail inlet
6.Table type traction machine
Optional Features
1.Running direction indication
2.Handrail illumination
3.EHC colorful handrail
4.VVVF controller
5.Skirt panel brush
6.Automatic start & stop
7.Automatic oiling
8.Step lights

FAQ
1. Price
Re: please send us inquiry from Made In China, we will qutoe to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.

---
