Zero-Phase Current Transformer with Ferrite Core, High Accuracy Sensor for Power Transducer 1: 100

Product Description

Product Description Current Transformer use in electronic watt-hour meter
Features:
1. use in electronic watt-hour meter applications
2. 120/240V 50/60 Hz in single and polyphase applications
3. Epoxy or tape wrapped coil protection
4. With high permeability permalloy,high precision,excellent linear performance,huge current load and low price

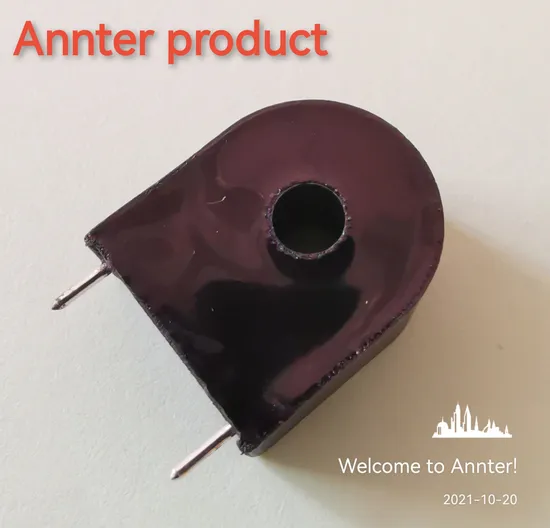

Detailed Photos
Product Parameters Machanical Specifications of Current Transformer
1.120/240V and 50/60 Hz applications
2.DC current capability up to 150 Apk
3.AC current up to 480 Apk for defined errors
4.Epoxy potted finished
5.Wire lead through out,suitable for distance mounting
6.Electrical strength:3000VAC 1mA
7.Insulation resistance:500VDC≥100MΩ
ELECTRICAL CHARACTERISTICS:
1.Inductance:20mH Min@10.0KHz/0.25V
2.DCR: 1.40Ω Max(25ºC)
3. Turns: 100T +/-3%
4. Hipot: 3750V 5mA 1 Sec (Pin- Hole)
Notes: 1. Rohs 2.0 requirements 2. All material can meet UL requirements
Company Profile

Our Advantages
Annter Technology Group is a manufacturer specializing in power inductors , transformers, and wireless charegers.We have been in this industry for over 15 years, please have a look at our website www.made-in-china.com/showroom/annterbill .Sincerely hope to estibish win-win business relationship with your company.
Here're 5 reasons to consider Annter :
1. We could customized the products for you.
2. Texture packing could be designed by our engineer.
3. More than 10 Years experience that could meet your high quality level.
4. for the order size, we're willing to be quite flexible to meet your need.
5. We guarantee 3---5 years in all products
Welcome to Annter , thank you !

---
