Plastic Milk Bottle/ Yoghurt Bottle/ Shampoo Bottle Recycling Machine 500kg/Hr Washing Line

Product Description

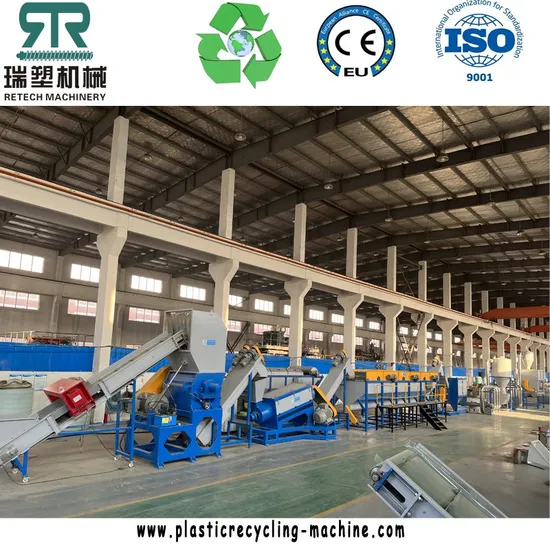

Plastic Milk Bottle Yoghurt Bottle Shampoo Bottle Washing Line
Product Description
Our Plastic PE PP PS ABS PC Pet PVC PA Plastic Washing Recycling Plant is fully designed&manufacturered by RETECH team. With more than 15 years experience to keep reseraching and development, we can achieve to offer 500kg/h-5000kg/h plastic recycling solutions according to your special requirements.
It used to recycling the waste HDPE/LDPE/PP Bottles and buckets,hollow container and so on.The production line including the conveyor belt,metal detector ,plastic wet crusher, floating washing tank,high speed friction washer,centrifugal dewatering machine; drying system and label separating machine,material collecting packing system.
After crushing and washing and drying,we can use it to pelletizing line.We also can customzed it for you according to your requirement.
Product Parameters

Model	Capacity	Installed Power	Water Supply	Area Required :m
RS-500	500kg/hr	100KW	4-5m³/hr	20*4.5*5
RS-1000	1000kg/hr	115KW	5-6m³/hr	20*4.5*5
RS-1500	1500kg/hr	125KW	7-8m³/hr	23*5*5
RS-2000	2000kg/hr	180KW	8-10m³/hr	25*5*5
RS-3000	3000kg/hr	225KW	10-15m³/hr	28*5*5

Detailed Photos
Features
Plastic Crusher Machine
Function :crushing the material into flakes
With water inlet do wet crushing
This series blades are more wider, it will save
the blades cost
Use the big roller bearing ensure its long time
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use
Machine up chamber is higher and covered by belt no flakes pop out
Friction Washing Loader
Function: Friction washing the material and loading up it
Up and down both mounted with bearing design
With water injection system to cleaning the screen
Bottom with water drain system
Washing off the dirty and loading the material out to next step processing
Floating Washing Tank

Function: Washing the flakes, prevent dirty going into next process The roller is specially made can have more
washing for lakes but less water take out
Bottom with Positive and negative screw to pushing the dirty into middle
High Speed Dewater Machine
Function: take out dirty and remover water
With the roller bearing and fixed outside of
rotor for long use life
Inside with mesh layer, mesh diameter: 3mm
With water spray system to clean the mesh
Company Profile
RETECH MACHINERY: is a professional machine manufacturer dedicated to designing and developing the high technology plastic machine with more than 10 years' experience. Our developing concept is do better and better.
We attend the CHINAPLAS every year and take with our machine for test run at the booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc.
Please kindly contact with us in advance if you also have time to attend and sincerely welcome to our booth for visit and discuss about detailed issues.
MAKE THE EARTH GREEN! Design, Manufacturing, Service!

---
